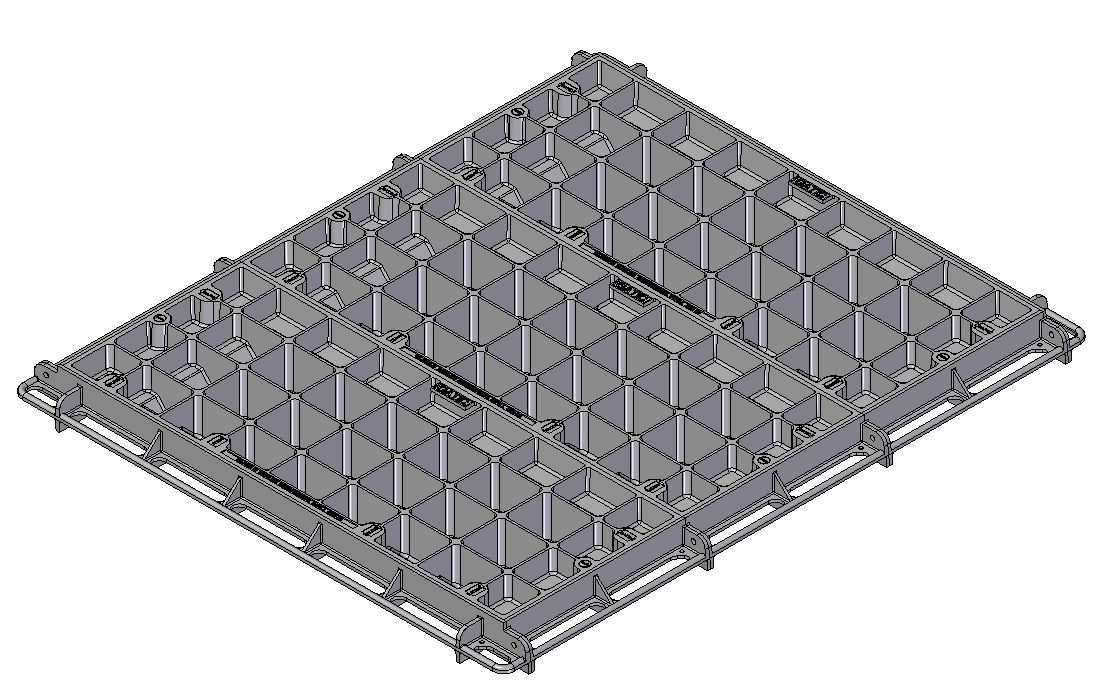

762mm W x 2274mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

Rectangular Cover & Frame

System Metals

Product Code GM303C7622D

Size/Diameter 750MM

Primary Material OTHER

Primary Unit of Measure EA

Number of Parts 3

Load Class D

Markings None

Secondary Unit Measure EA

Size/Diameter 750MM

Weight 388.0 kg

Clear Opening - W x L 762 x 2273

GM302C3065B

305mm W x 653mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class B

GM303C6119B

610mm W x 1916mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM302C6111D

610mm W x 1137mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM303C7619B

762mm W x 1916mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM303C9118D

914mm W x 1817mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM302C7612B

762mm W x 1263mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class B

GM301S96D

914mm W x 610mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, Class D

GM303C4519B

457mm W x 1916mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM301C64D

610mm W x 457mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class D

GM301C97D

914mm W x 762mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class D
