610mm W x 762mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class G

Rectangular Cover & Frame

System Metals

Product Code GM301C67G

CAD PDF View

Size/Diameter 600MM

Primary Material DUCTILE IRON

Primary Unit of Measure EA

Number of Parts 1

Load Class G

Markings None

Secondary Unit Measure EA

Size/Diameter 600MM

Weight 177.0 kg

Clear Opening - W x L 610 x 762

GM301C76D

762mm W x 610mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class D

GM303C6122D

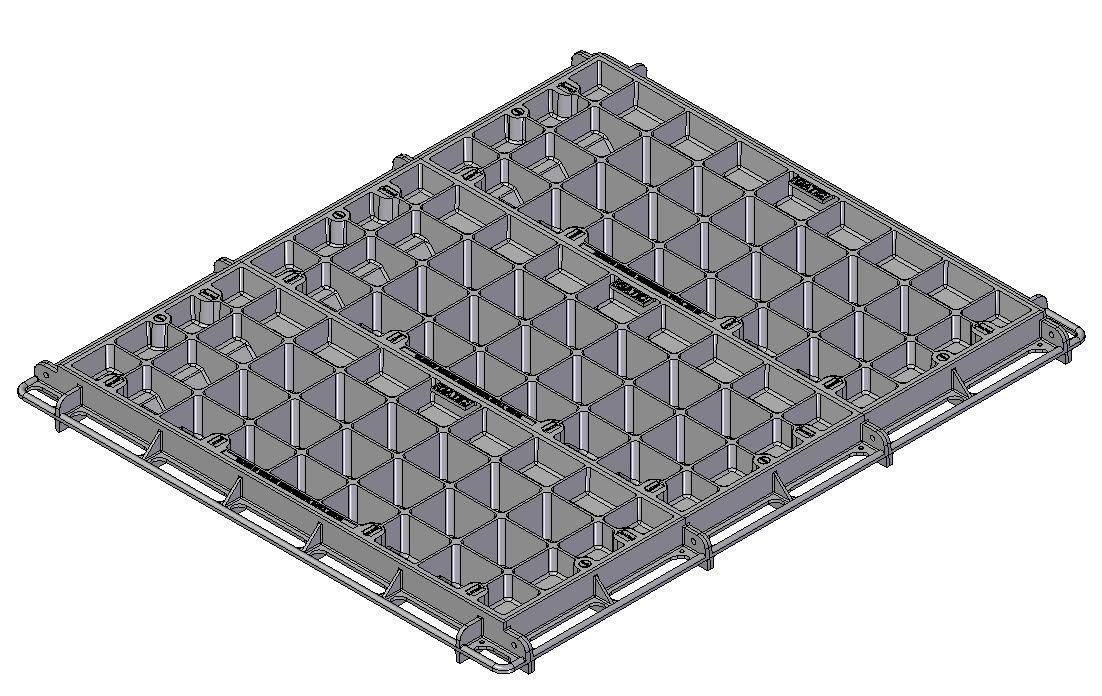

610mm W x 2274mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM303C9123B

914mm W x 2372mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM303C7619D

762mm W x 1970mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM303C9122B

914mm W x 2220mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM303C4518D

457mm W x 1817mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM303C7619G

762mm W x 1982mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class G

GM302C6112D

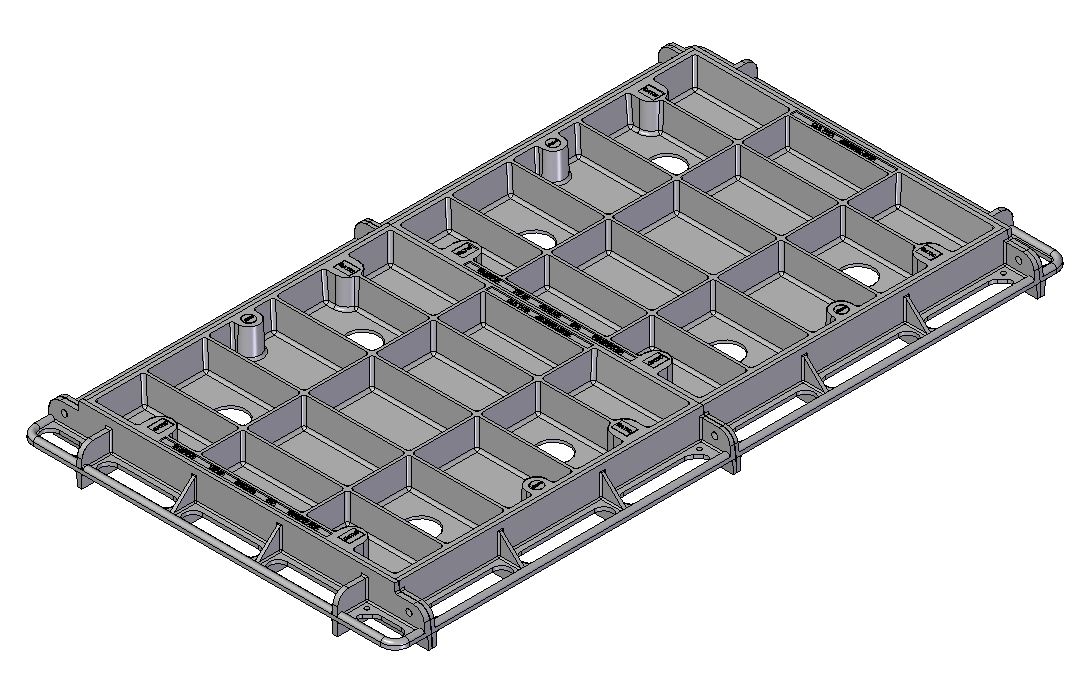

610mm W x 1290mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM303C7621D

762mm W x 2122mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM302S9112B

914mm W x 1263mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class B
