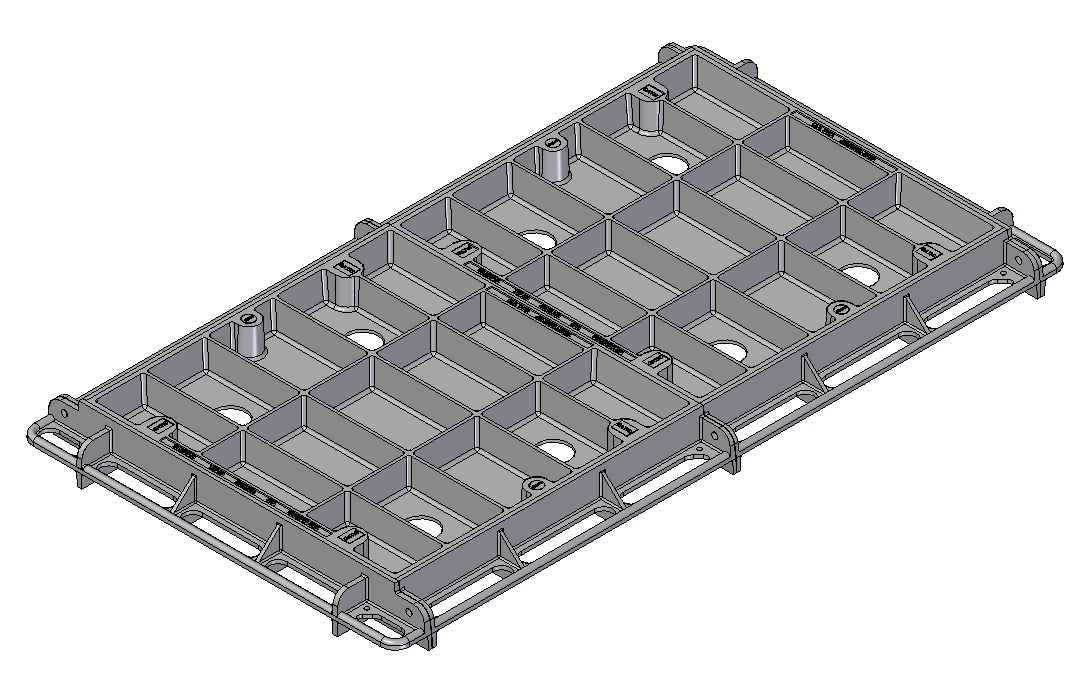

762mm W x 1137mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

Rectangular Cover & Frame

System Metals

Product Code GM302C7611D

Size/Diameter 750MM

Primary Material DUCTILE IRON

Primary Unit of Measure EA

Number of Parts 2

Load Class D

Markings None

Secondary Unit Measure EA

Size/Diameter 750MM

Weight 215.3 kg

Clear Opening - W x L 762 x 1137

GM303C9127D

914mm W x 2730mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM303S6124D

610mm W x 2426mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM303C7622D

762mm W x 2274mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM302C9112D

914mm W x 1290mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM303C4514B

457mm W x 1457mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM302S9198D

914mm W x 984mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class D

GM303C9121D

914mm W x 2122mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM303C7621D

762mm W x 2122mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM301C67G

610mm W x 762mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class G

GM303C6118D

610mm W x 1817mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D
