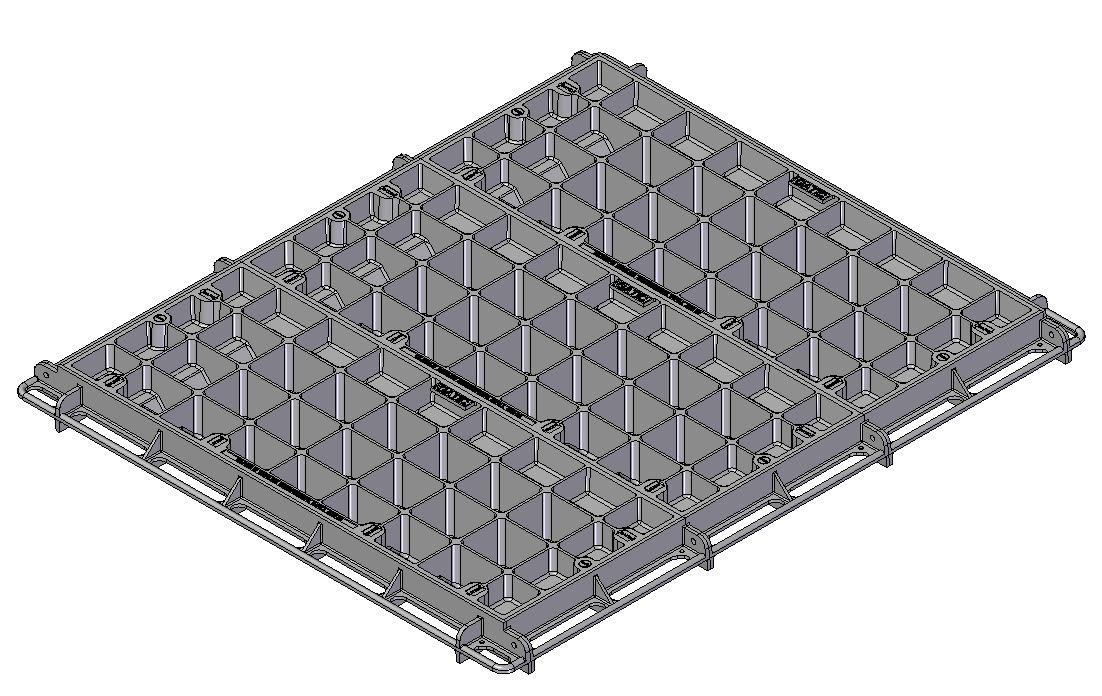

1218mm W x 1511mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

Rectangular Cover & Frame

System Metals

Product Code GM303C1215D

CAD PDF View

Size/Diameter 1200MM

Primary Material OTHER

Primary Unit of Measure EA

Number of Parts 3

Load Class D

Markings None

Secondary Unit Measure EA

Size/Diameter 1200MM

Weight 398.0 kg

Clear Opening - W x L 1219 x 1512

GM301S76D

762mm W x 610mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, Class D

GM302C6114D

610mm W x 1442mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM303C6119D

610mm W x 1970mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM302C9118B

914mm W x 1871mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class B

GM302C7614D

762mm W x 1442mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM301S96B

914mm W x 610mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, Class B

GM302C6112G

610mm W x 1296mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class G

GM303C9119D

914mm W x 1970mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM302S6112G

610mm W x 1296mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class G

GM302C9114B

914mm W x 1415mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class B
