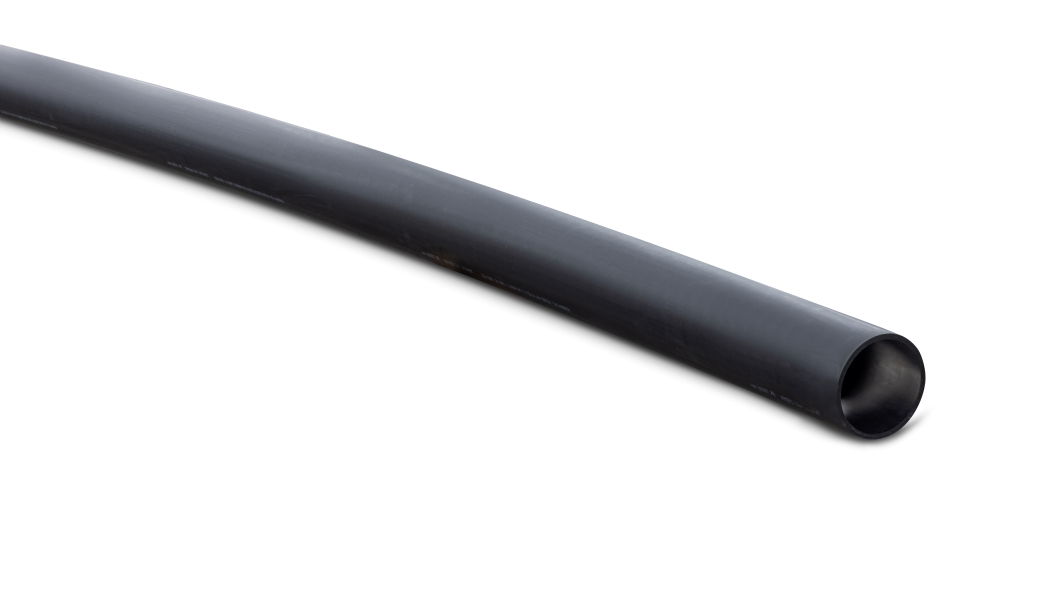

PE100 Polyethylene Pipe Metric DN560 SDR26 x 20 m Black
System PE Systems
Product Code POH06560QE
Overview
Technical Guide
View
Product Properties
Size/Diameter
560MM
Length
20M
Primary Material
POLYETHYLENE
Primary Unit of Measure
LE
Joint Type
Electrofusion, compression, butt-weld, mechanical
Colour
Black
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius
630 kPa @ 20°C
Minimum Radius of Curvature
45 (x DN) Ref: POP202 Nov2016
Unprotected UV Exposed
99.9% UV stable (black only)
Maximum Support Spacing of Pipe Graded
3.00 m
Maximum Support Spacing of Pipe Vertical
6.00 m
Industry Specific Names
poly pipe, PE, polythene, polyethylene pipe, HDPE
Secondary Unit Measure
LE
Product Dimensions
Size/Diameter
560MM
Weight
736.56 kg
Wall Thickness
13.7mm
Maximum Wall Thickness
23.7
Minimum Wall Thickness
21.4
