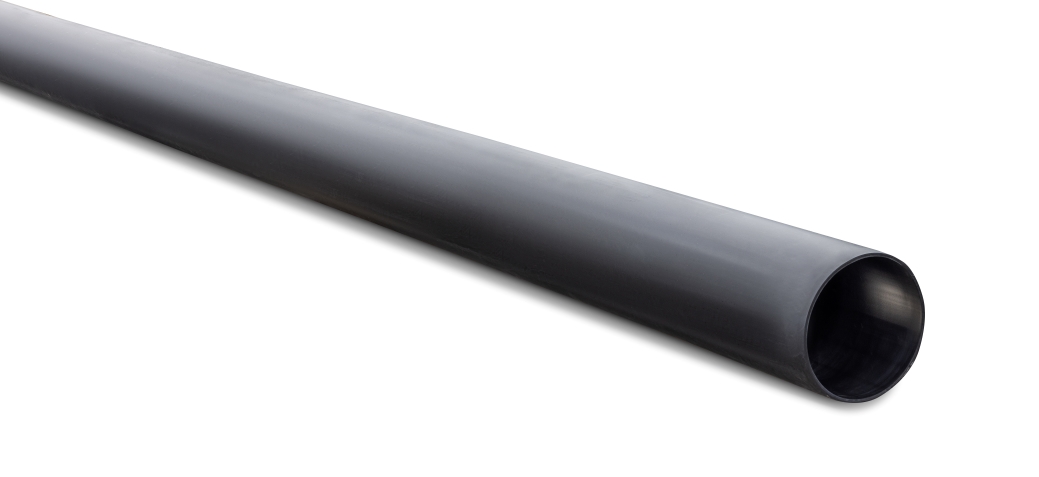

PE100 Polyethylene Pipe Metric DN90 SDR11 x 6 m Black

Back to all products

Length

PE100 Polyethylene Pipe Metric DN90 SDR11 x 6 m Black

System PE Systems

Product Code POH1690F

Overview

Technical Guide View

Product Properties

Size/Diameter 90MM

Length 6.0M

Primary Material POLYETHYLENE

Primary Unit of Measure LE

Joint Type Electrofusion, compression, butt-weld, mechanical

Colour Black

Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf

Allowable Operating Pressure - 20 Degrees Celsius 1600 kPa @ 20°C

Minimum Radius of Curvature 15 (x DN) Ref: POP202 Nov2016

Unprotected UV Exposed 99.9% UV stable (black only)

Maximum Support Spacing of Pipe Graded 1.35m

Maximum Support Spacing of Pipe Vertical 1.35m

Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE

Secondary Unit Measure LE

B2B Pack UOM Crate

B2B Pack Quantity 58

Product Dimensions

Size/Diameter 90MM

Weight 12.89 kg

Crate Quantity 58

Wall Thickness 8.2mm

Maximum Wall Thickness 9.2

Minimum Wall Thickness 8.2

Standards & Accreditations

Product Standard View
