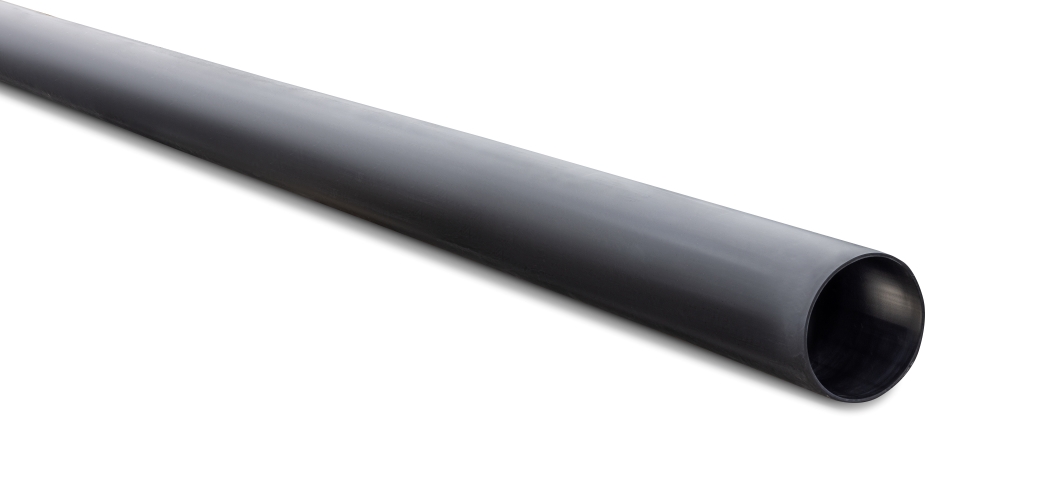

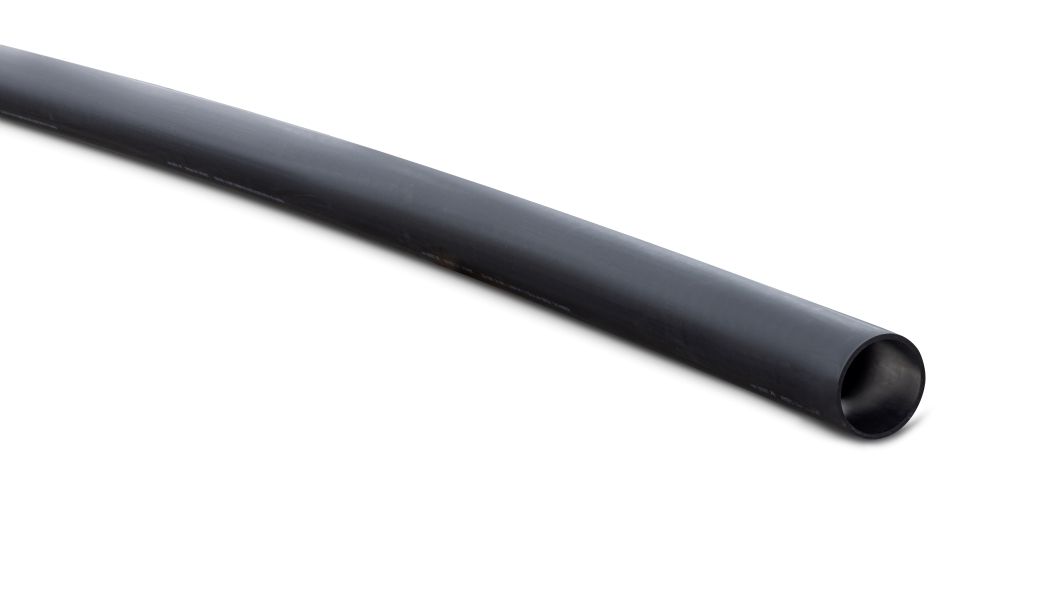

PE100 Polyethylene Pipe Metric DN160 SDR11 x 12 m Black With Blue Stripes

Back to all products

Length

PE100 Polyethylene Pipe Metric DN160 SDR11 x 12 m Black With Blue Stripes

System PE Systems

Product Code PBH16160M

Overview

Technical Guide View

Product Properties

Size/Diameter 160MM

Length 12M

Primary Material POLYETHYLENE

Primary Unit of Measure LE

Joint Type Electrofusion, compression, butt-weld, mechanical

Colour Black with blue stripe

Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf

Allowable Operating Pressure - 20 Degrees Celsius 1600 kPa @ 20°C

Minimum Radius of Curvature 15 (x DN) Ref: POP202 Nov2016

Unprotected UV Exposed 2 years in accordance with AS/NZS 2033:2008

Maximum Support Spacing of Pipe Graded 2.00m

Maximum Support Spacing of Pipe Vertical 4.00m

Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE

Secondary Unit Measure LE

B2B Pack UOM Crate

B2B Pack Quantity 13

Product Dimensions

Size/Diameter 160MM

Weight 81.23 kg

Crate Quantity 13

Wall Thickness 14.6mm

Maximum Wall Thickness 16.2

Minimum Wall Thickness 14.6

Standards & Accreditations

Product Standard View
