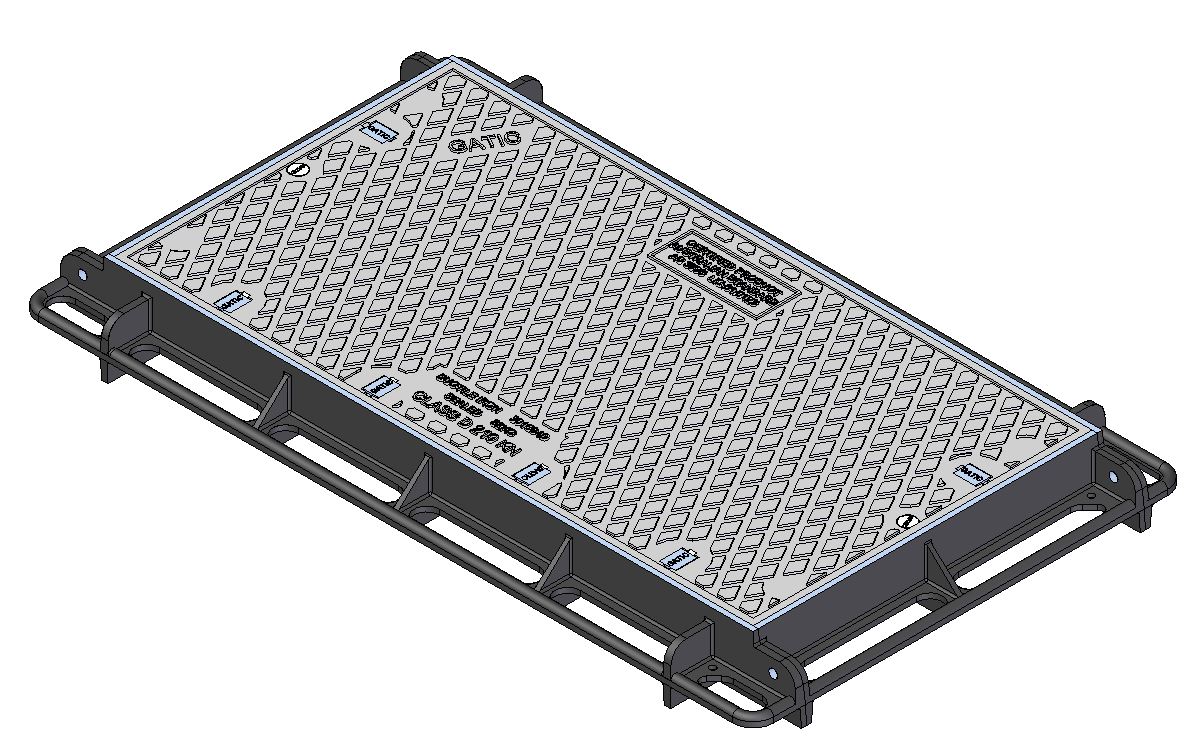

457mm W x 610mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class D

Rectangular Cover & Frame

System Metals

Product Code GM301C46D

CAD PDF View

Size/Diameter 450 mm

Primary Material OTHER

Primary Unit of Measure EA

Number of Parts 1

Load Class D

Markings None

Secondary Unit Measure EA

Size/Diameter 450 mm

Weight 83.0 kg

Clear Opening - W x L 457 x 610
