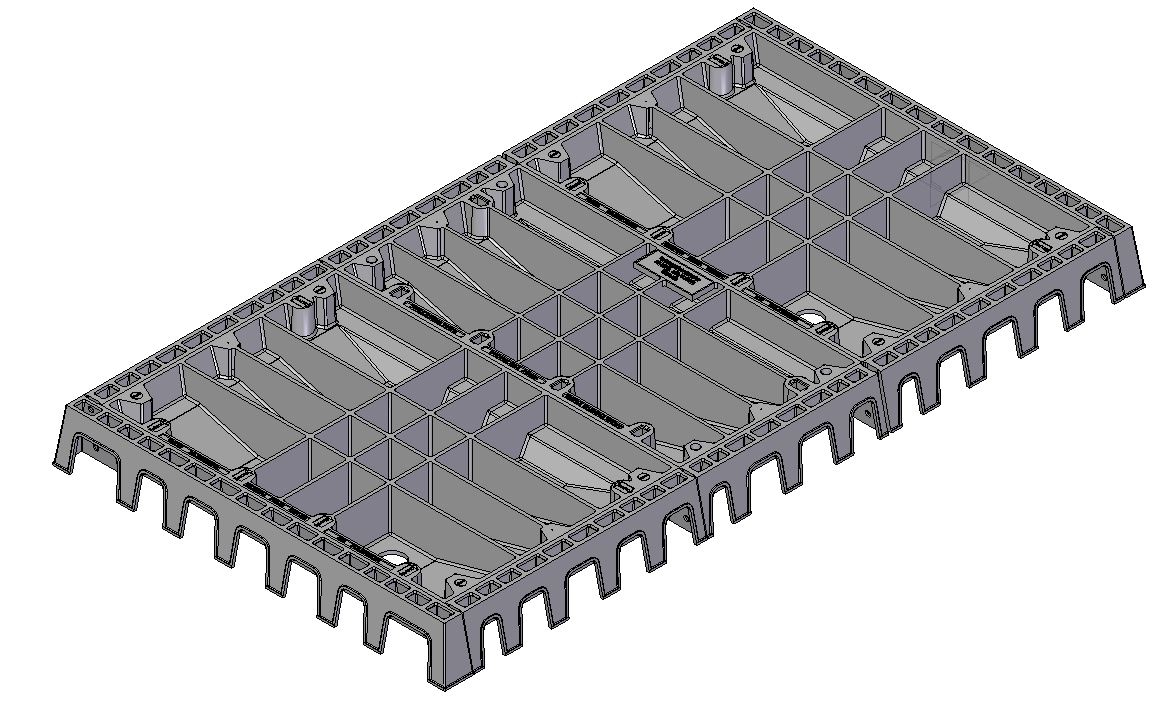

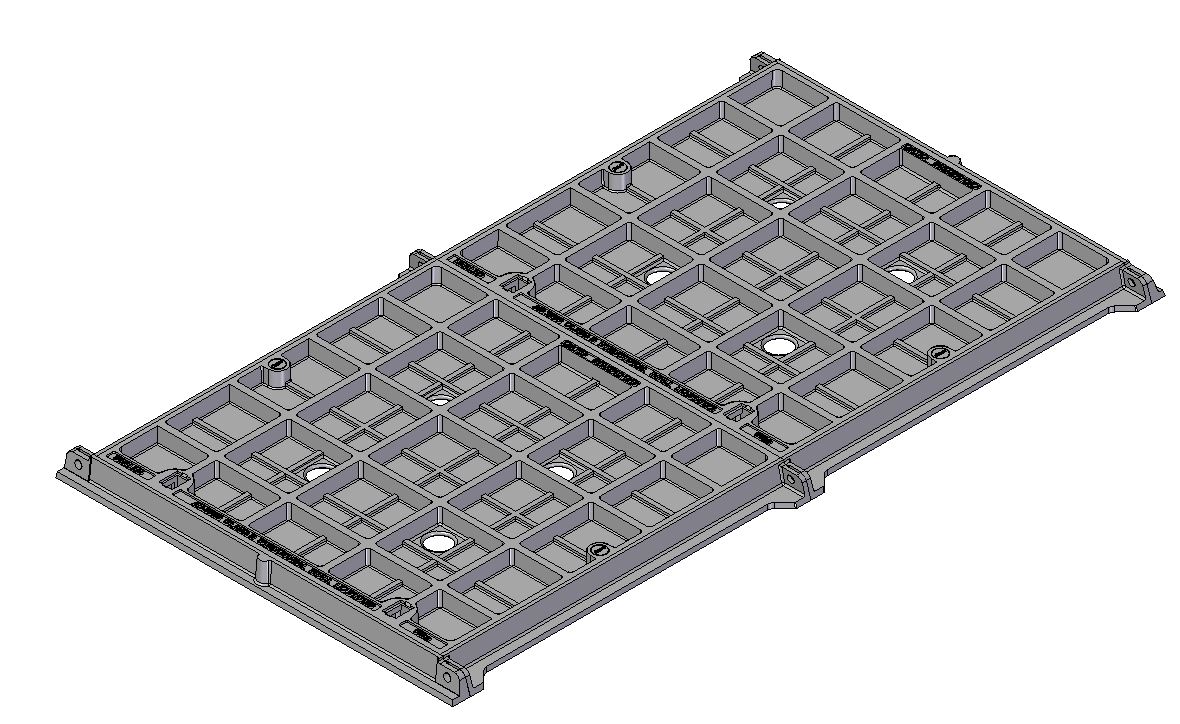

914mm W x 1664mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

Rectangular Cover & Frame

System Metals

Product Code GM303C9116D

Size/Diameter 900MM

Primary Material DUCTILE IRON

Primary Unit of Measure EA

Number of Parts 3

Load Class D

Markings None

Secondary Unit Measure EA

Size/Diameter 900MM

Weight 354.0 kg

Clear Opening - W x L 914 x 1664

GM303C9118G

914mm W x 1829mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class G

GM302C6114B

610mm W x 1415mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class B

GM303C7622B

762mm W x 2220mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM303C9122B

914mm W x 2220mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM302C7612B

762mm W x 1263mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class B

GM302S7612D

762mm W x 1290mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class D

GM302S9118D

914mm W x 1898mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class D

GM302C6114D

610mm W x 1442mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM303C6116B

610mm W x 1610mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM301C76D

762mm W x 610mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class D
