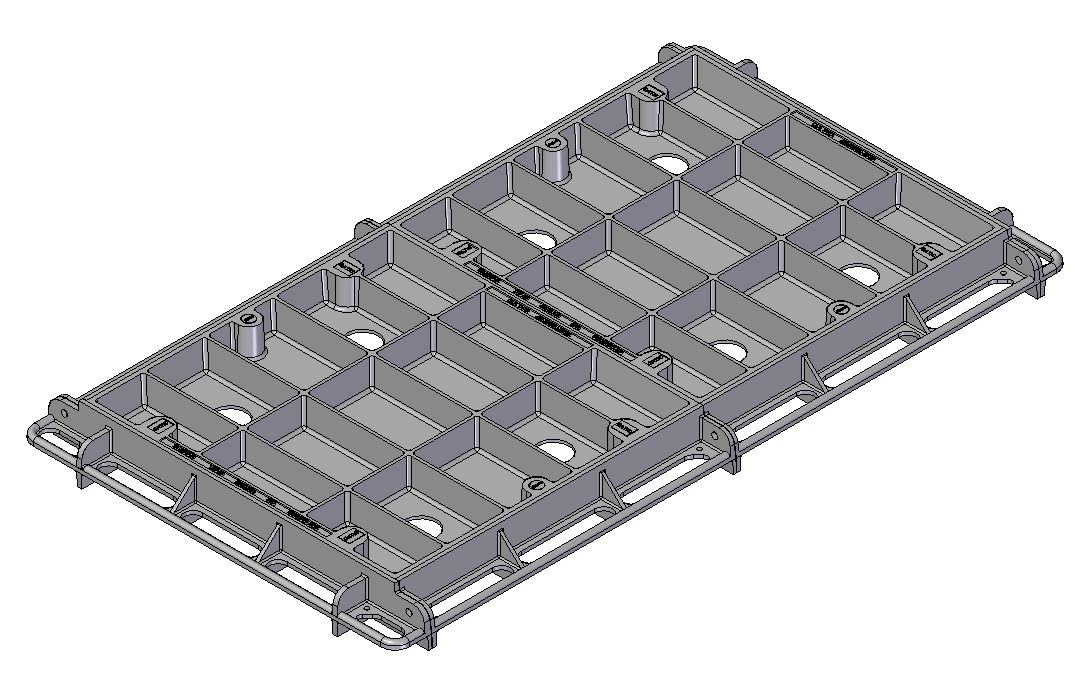

762mm W x 1290mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

Rectangular Cover & Frame

System Metals

Product Code GM302C7612D

Size/Diameter 750MM

Primary Material OTHER

Primary Unit of Measure EA

Number of Parts 2

Load Class D

Markings None

Secondary Unit Measure EA

Size/Diameter 750MM

Weight 249.0 kg

Clear Opening - W x L 762 x 1289

GM303C4519B

457mm W x 1916mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM303S6119D

610mm W x 1970mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 3 Part Cover, Class D

GM301C1261D

1218mm W x 610mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class D

GM302C1298D

1218mm W x 984mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM303C9127D

914mm W x 2730mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM301S74D

762mm W x 457mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, Class D

GM302C9112D

914mm W x 1290mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM302S9112B

914mm W x 1263mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class B

GM302C7614D

762mm W x 1442mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM303S6124D

610mm W x 2426mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D
