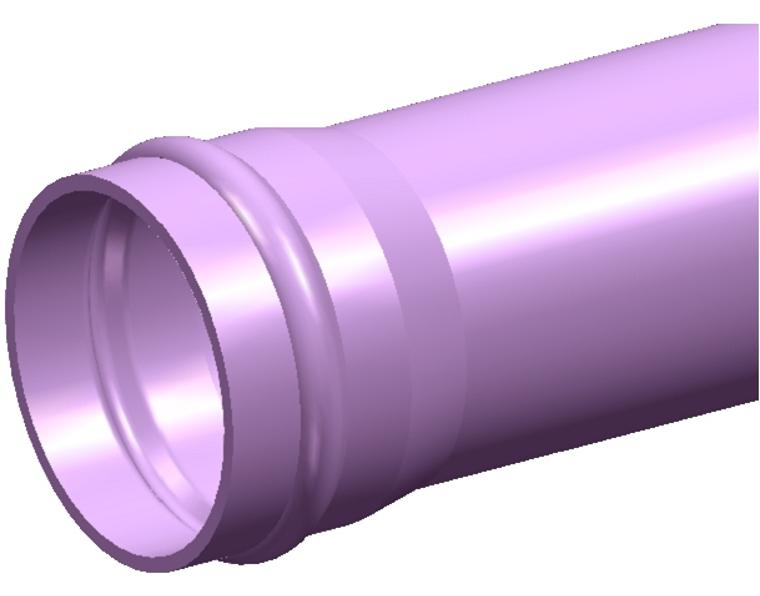

DN375 x 6m PN12.5 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ
System PVC Pressure System
Product Code PDHR12375
Overview
Product Properties
Size/Diameter
375MM
Rating
PN12.5
Length
6.0M
Primary Material
PVC
Primary Unit of Measure
LE
Joint Type
RRJ
Rubber Ring Material
EPDM polymer, which conforms to the requirements of AS 1646
Colour
Blue
Minimum Cover Depth
Not subject to vehicular loading 300mm | With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm | With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
7
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1200KPa
Minimum Radius of Curvature
112.5m
Socket Deflection
1°
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
Iplex Rhino®
Secondary Unit Measure
LE
B2B Pack UOM
Crate
B2B Pack Quantity
3
Product Dimensions
Size/Diameter
375MM
Weight
174
Crate Quantity
3
Crate Weight
522kg
Wall Thickness
14.9mm
Socket Depth
262.7mm
Chamfer Detail
33mm
Witness Mark Detail
282mm
Maximum Wall Thickness
15.8
Minimum Wall Thickness
14.2
Socket Length
263
