Length

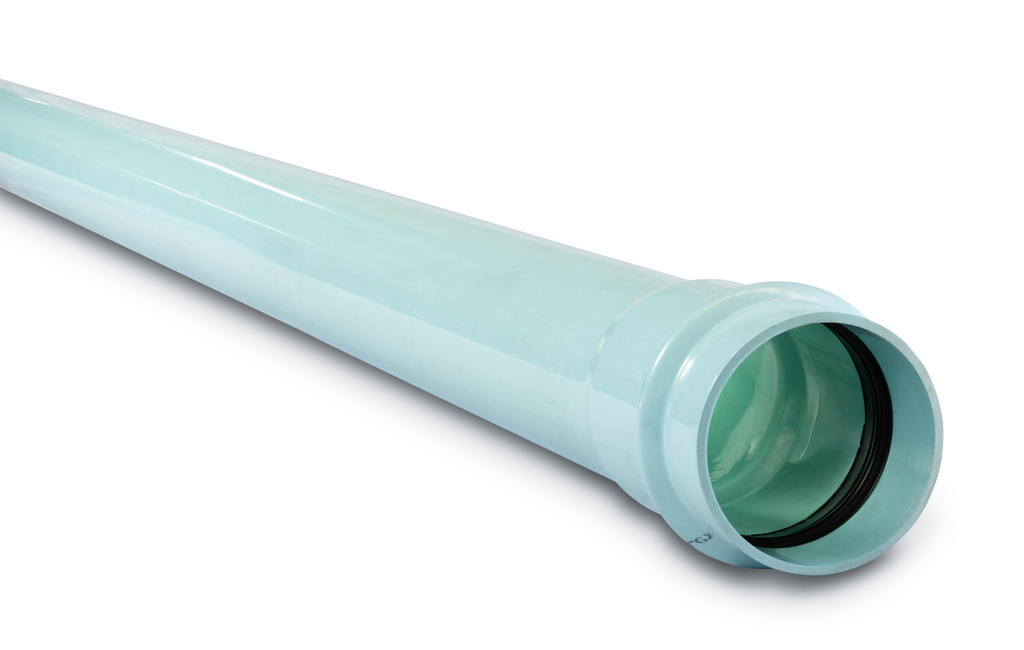

DN375 x 6m PN18 Blue Rhino Series 2 PVC-M Pipe Rieber RRJ
System PVC Pressure System
Product Code PDHR18375
Overview
Product Properties
Size/Diameter
375MM
Rating
PN18
Length
6.0M
Primary Material
PVC
Primary Unit of Measure
LE
Rubber Ring Material
EPDM
Colour
Blue
Minimum Cover Depth
Not subject to vehicular loading 300mm | With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm | With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
7
Allowable Operating Temperature - Degrees
50°C
Allowable Operating Pressure - 20 Degrees Celsius
1800kPa
Minimum Radius of Curvature
112m
Socket Deflection
1°
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Secondary Unit Measure
LE
B2B Pack UOM
Crate
B2B Pack Quantity
3
Product Dimensions
Size/Diameter
375MM
Weight
250
Crate Quantity
3
Crate Weight
750kg
Wall Thickness
22mm
Socket Depth
262.7mm
Chamfer Detail
33mm
Witness Mark Detail
282mm
Maximum Wall Thickness
23.1
Minimum Wall Thickness
20.8
Socket Length
263
