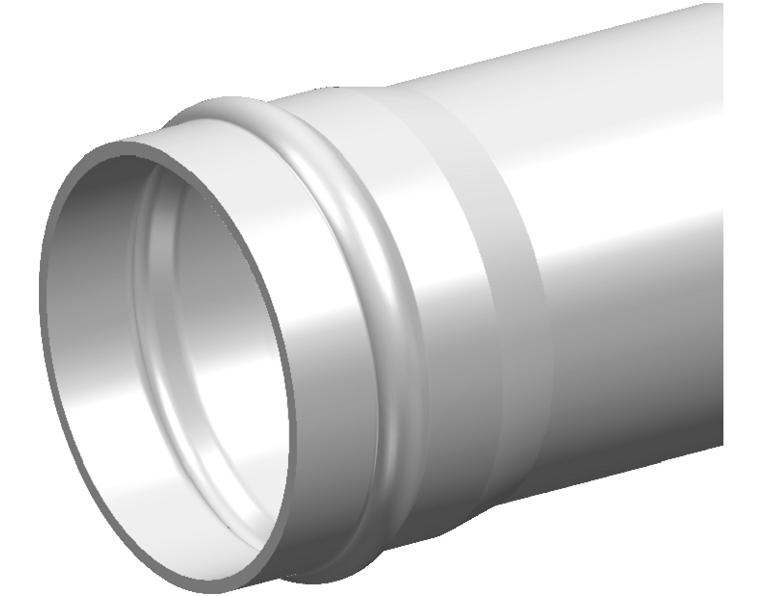

DN300 x 6m PN16 Cream Rhino Series 2 PVC-M Pipe Rieber RRJ

System   PVC Pressure System

Product Code   PDHRC16300

Overview
  • Australian Made
  • BEP PVC - Manufacutred from Best Environmental Practice PVC
  • Installation Economics
  • Operation Efficiences
  • Corrosion Resistant
  • Light weight
  • Electrically non conductive
Product Data Sheet Artboard View
Product Properties
Size/Diameter 300MM
Rating PN16
Length 6.0M
Primary Material PVC
Primary Unit of Measure LE
Rubber Ring Material EPDM
Colour Cream
Minimum Cover Depth Not subject to vehicular loading 300mm | With vehicular loading, not in roadways 450mm | With vehicular loading, beneath sealed roadways 600mm | With vehicular loading, beneath unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant 10
Allowable Operating Temperature - Degrees 50°C
Allowable Operating Pressure - 20 Degrees Celsius 1600kPa
Minimum Radius of Curvature 90m
Socket Deflection
Maximum Diametric Deflection - 50yrs 0.075
Unprotected UV Exposed 2 Years
Secondary Unit Measure LE
B2B Pack UOM Crate
B2B Pack Quantity 6
Product Dimensions
Size/Diameter 300MM
Weight 147
Crate Quantity 6
Crate Weight 882kg
Wall Thickness 16mm
Socket Depth 219.2mm
Chamfer Detail 30mm
Witness Mark Detail 237mm
Maximum Wall Thickness 16.8
Minimum Wall Thickness 15.1
Socket Length 219
Standards & Accreditations
Product Standard Artboard View
Product Approvals and Appraisals Artboard View
Environmental Accreditation Artboard View
