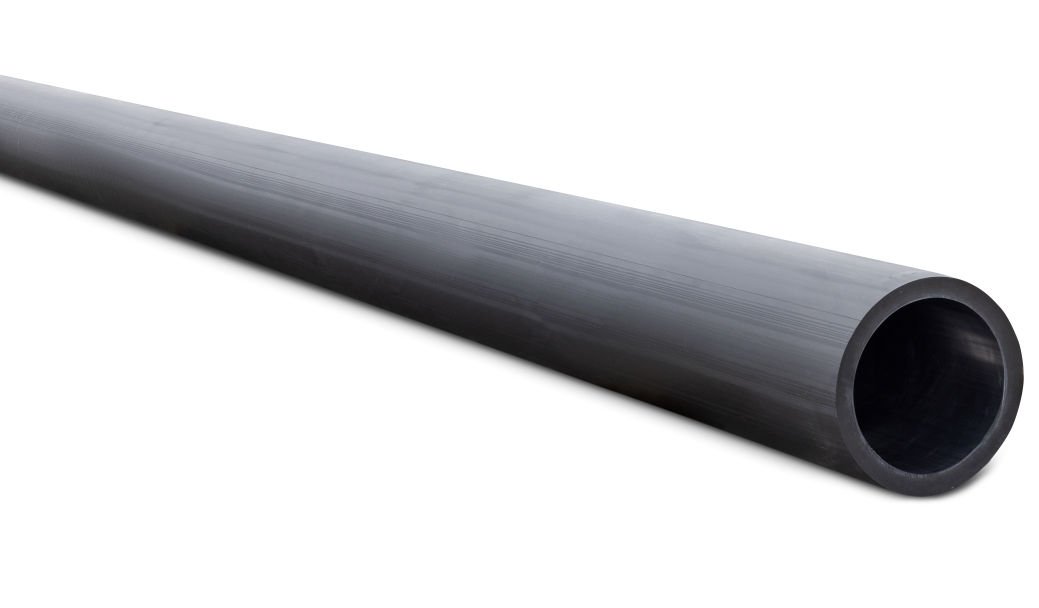

PE100 Polyethylene Pipe Metric DN900 SDR21 x 20 m Black

Back to all products

Length

PE100 Polyethylene Pipe Metric DN900 SDR21 x 20 m Black

System PE Systems

Product Code POH08900QE

Overview

Technical Guide View

Product Properties

Size/Diameter 900MM

Length 20M

Primary Material POLYETHYLENE

Primary Unit of Measure LE

Joint Type Electrofusion, compression, butt-weld, mechanical

Colour Black

Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf

Allowable Operating Pressure - 20 Degrees Celsius 800 kPa @ 20°C

Minimum Radius of Curvature 35 (x DN) Ref: POP202 Nov2016

Unprotected UV Exposed 99.9% UV stable (black only)

Maximum Support Spacing of Pipe Graded 1.50m (If longer spans required, refer Iplex Sales Engineer)

Maximum Support Spacing of Pipe Vertical 3.00m

Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE

Secondary Unit Measure LE

Product Dimensions

Size/Diameter 900MM

Weight 2343.35 kg

Wall Thickness 42.9mm

Maximum Wall Thickness 47.3

Minimum Wall Thickness 42.9

Standards & Accreditations

Product Standard View
