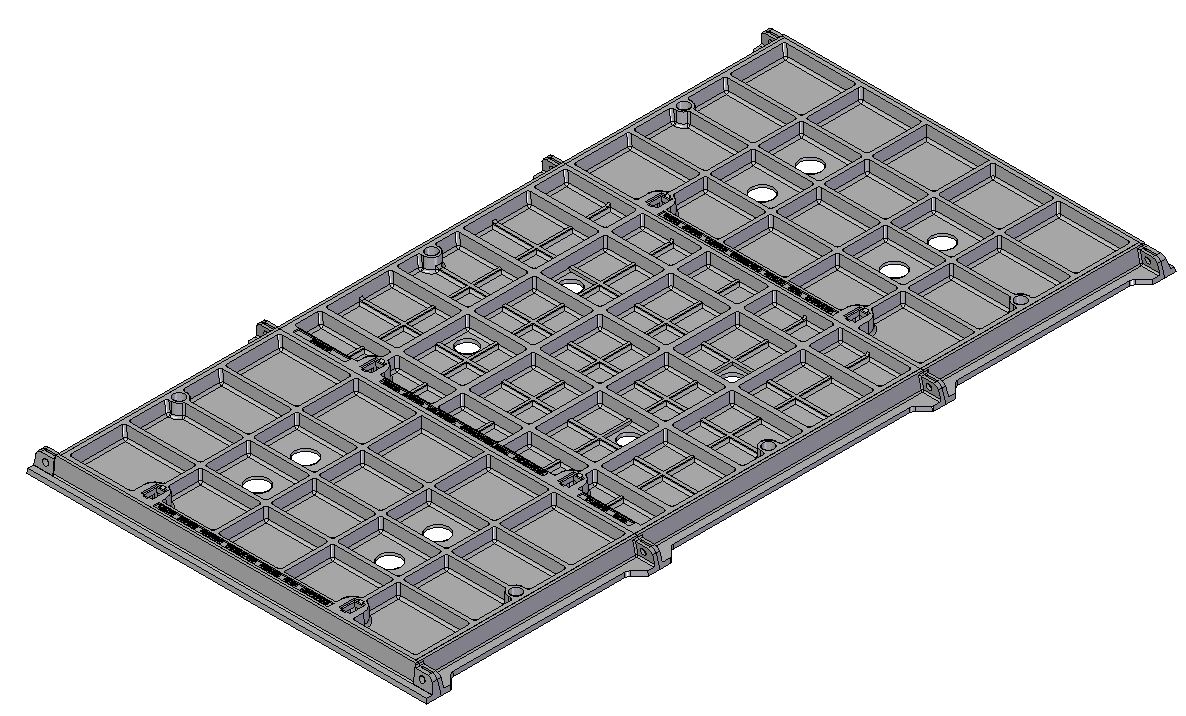

914mm W x 1290mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

Rectangular Cover & Frame

System Metals

Product Code GM302C9112D

Size/Diameter 900 mm

Primary Material OTHER

Primary Unit of Measure EA

Number of Parts 2

Load Class D

Markings None

Secondary Unit Measure EA

Size/Diameter 900 mm

Weight 261.0 kg

Clear Opening - W x L 914 x 1289

GM303C7619G

762mm W x 1982mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class G

GM303C7622D

762mm W x 2274mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class D

GM302C7612B

762mm W x 1263mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class B

GM303C7617B

762mm W x 1763mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 3 Part Cover, Class B

GM301C94B

914mm W x 457mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, Class B

GM302S6198D

610mm W x 984mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class D

GM302S9198D

914mm W x 984mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class D

GM302S9112D

914mm W x 1290mm L Clear Opening, Ductile Iron, Solid Top Cover and Frame Assembly, 2 Part Cover, Class B

GM302C9115D

914mm W x 1594mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D

GM302C6115D

610mm W x 1594mm L Clear Opening, Ductile Iron, Concrete Infill Cover and Frame Assembly, 2 Part Cover, Class D
