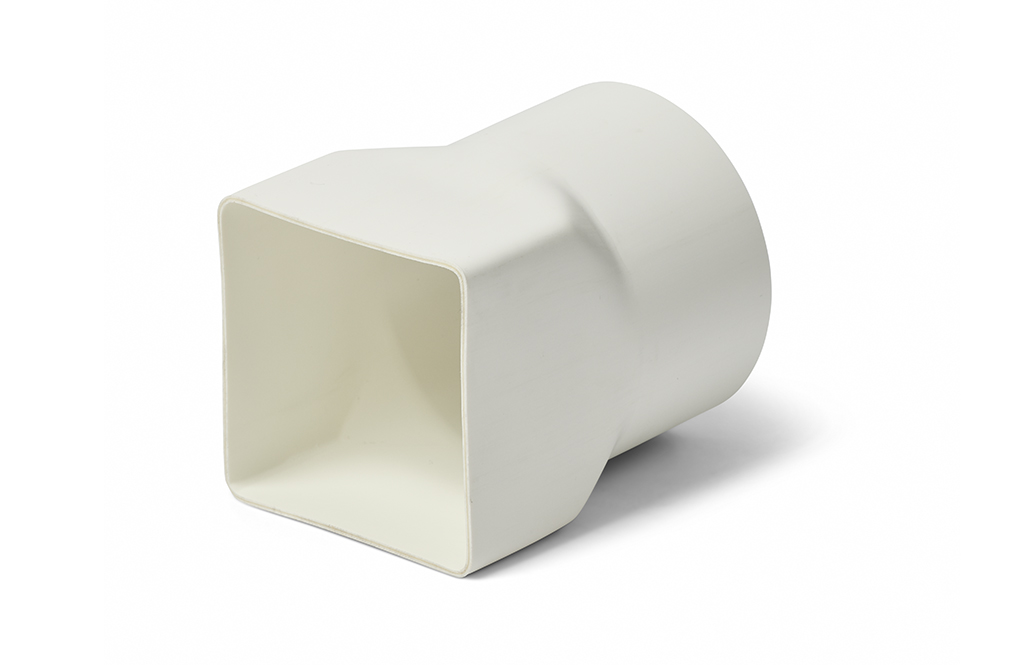

DN90 x DN100 x DN80 Stormwater PVC-U Rectangle Adaptor SWJ

Back to all products

Adaptor

DN90 x DN100 x DN80 Stormwater PVC-U Rectangle Adaptor SWJ

System PVC Non Pressure

Product Code W160901080

Overview

Australian Made
BEP PVC - Manufacutred from Best Environmental Practice PVC
Installation Economics
Operation Efficiences
Corrosion Resistant
Treet root intrusion resistance

CAD 2D View

CAD 3D View

Product Data Sheet View

CAD PDF View

Product Properties

Size/Diameter 90MM

Rating SN2

Primary Material PVC

Primary Unit of Measure EA

Joint Type SWJ

Colour Grey

Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm

Average Number of Joints per Litre - Iplex Solvent 60

Average Number of Joints per Litre - Iplex Primer 180

Cure Time for Solvent Weld Joints 24 hours

Unprotected UV Exposed 2 Years

Secondary Unit Measure EA

B2B Pack UOM Carton

B2B Pack Quantity 90

Product Dimensions

Size/Diameter 90MM

Weight 0.08 kg

Carton Quantity 90

Carton Weight 7.74kg

Wall Thickness 1.9mm

Socket Depth 29mm

Standards & Accreditations

Product Standard View

Warranty View
