Bend/Elbow

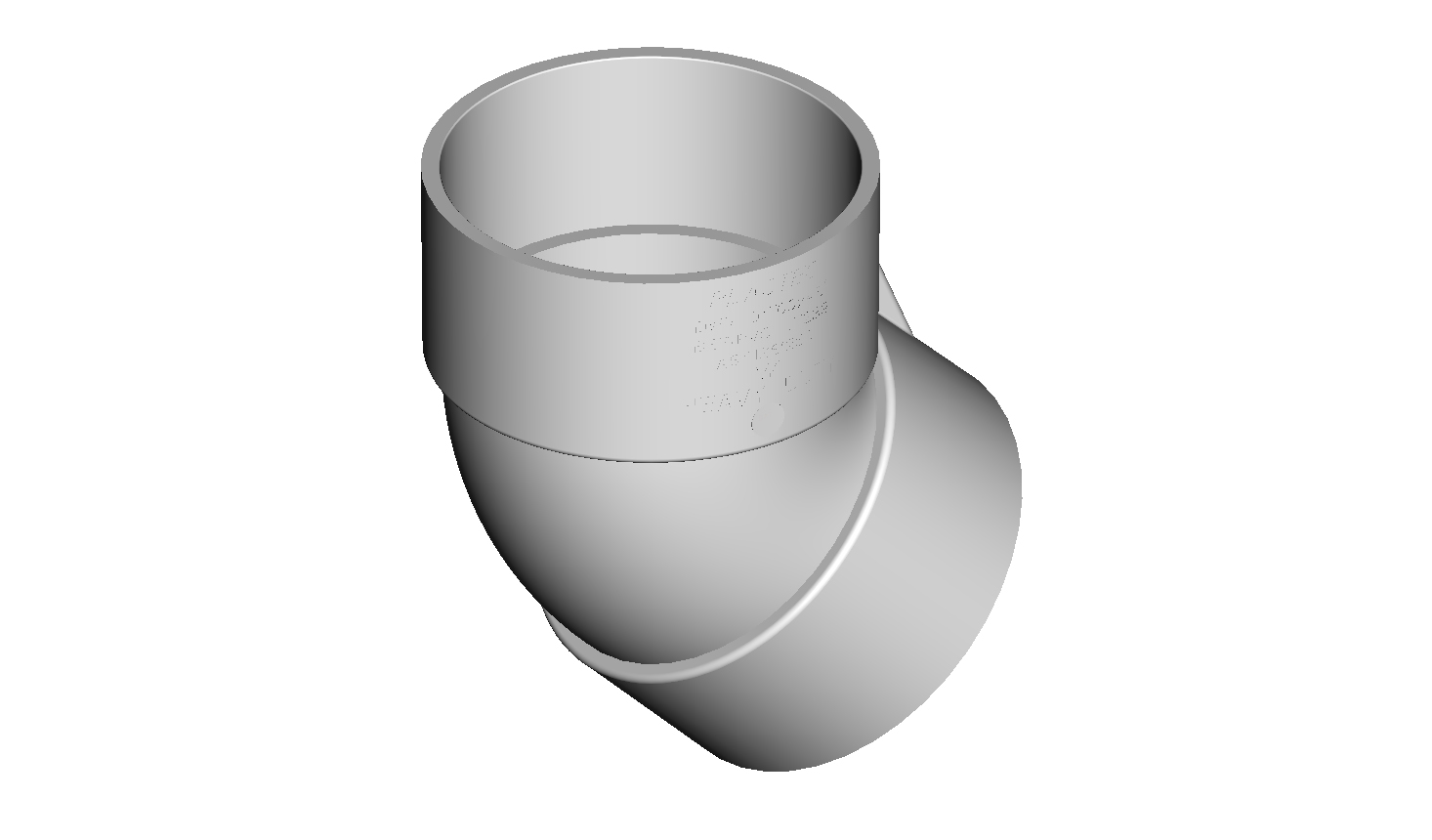

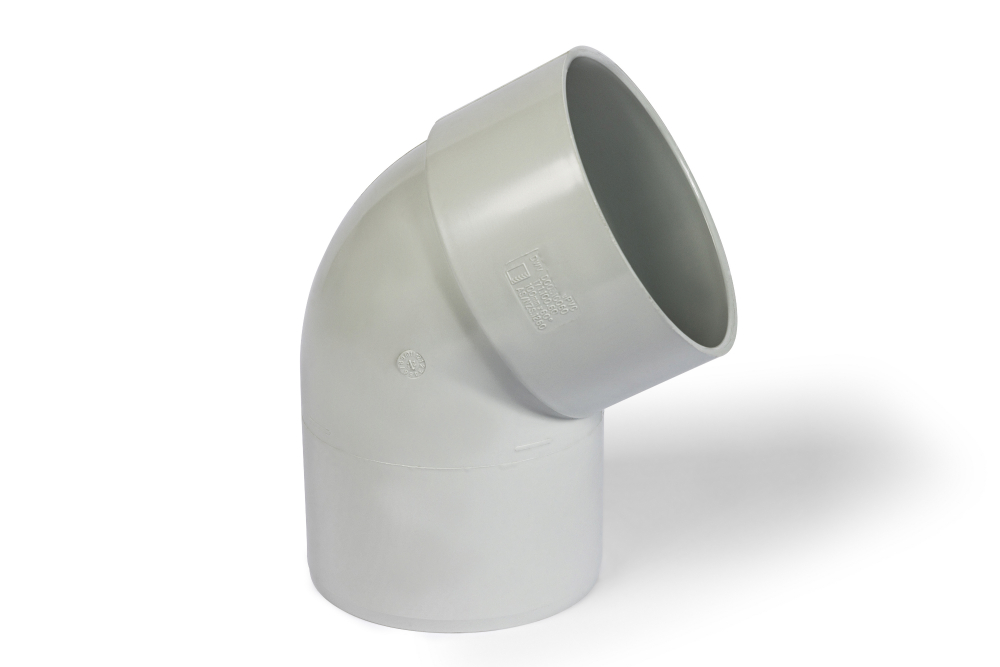

DN80 x 42D DWV PVC-U Bend MF SWJ
System PVC Non Pressure
Product Code D0038042
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size/Diameter
80MM
Degree
42
Primary Material
PVC
Primary Unit of Measure
EA
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
38
Average Number of Joints per Litre - Iplex Primer
114
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Unprotected UV Exposed
2 Years
Secondary Unit Measure
EA
B2B Pack UOM
Carton
B2B Pack Quantity
60
Product Dimensions
Size/Diameter
80MM
Weight
0.22 kg
Carton Quantity
60
Carton Weight
12.96kg
