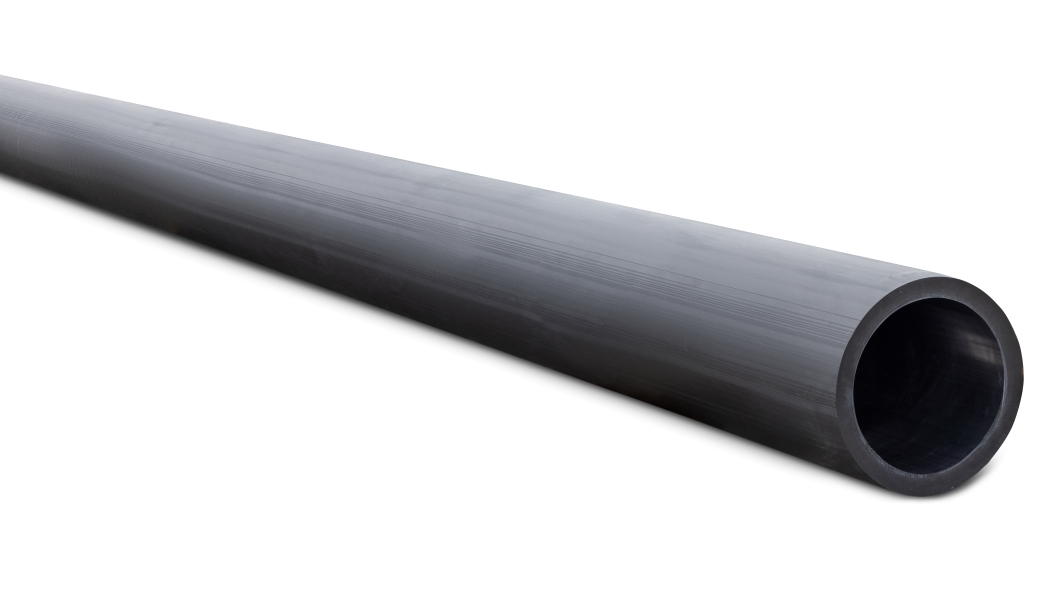

PE100 Polyethylene Pipe Metric DN560 SDR41 x 20 m Black

Back to all products

Length

PE100 Polyethylene Pipe Metric DN560 SDR41 x 20 m Black

System PE Systems

Product Code POH04560QE

Overview

Technical Guide View

Product Properties

Size/Diameter 560MM

Length 20M

Primary Material POLYETHYLENE

Primary Unit of Measure LE

Joint Type Electrofusion, compression, butt-weld, mechanical

Colour Black

Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf

Allowable Operating Pressure - 20 Degrees Celsius 400 kPa @ 20°C

Minimum Radius of Curvature Refer Iplex Sales Engineer

Unprotected UV Exposed 99.9% UV stable (black only)

Maximum Support Spacing of Pipe Graded 3.00 m

Maximum Support Spacing of Pipe Vertical 6.00 m

Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE

Secondary Unit Measure LE

Product Dimensions

Size/Diameter 560MM

Weight 479.08 kg

Wall Thickness 13.7mm

Maximum Wall Thickness 15.2

Minimum Wall Thickness 13.7

Standards & Accreditations

Product Standard View
