Stormwater Saddle

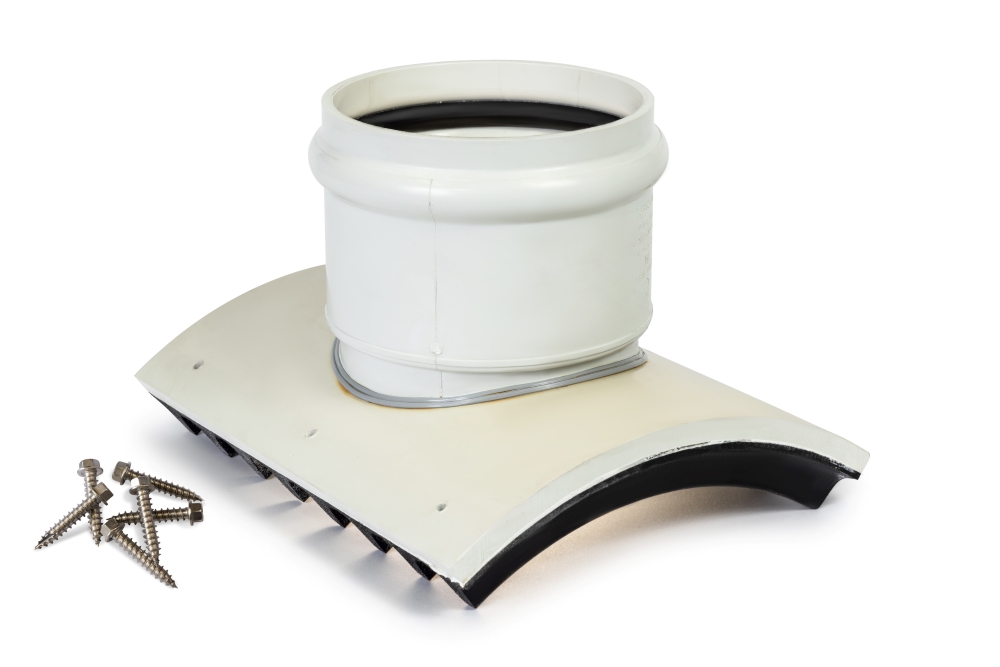

DN525 x dn100 x 90° BlackMax® Stormwater Saddle DWV RRJ (PVC Fab)
System PP Drainage & Sewer Systems
Product Code GWR50521090
Overview
Product Properties
Size/Diameter
525MM
Rating
Non Pressure
Degree
90
Primary Material
PVC
Primary Unit of Measure
EA
Joint Type
RRJ
Rubber Ring Material
Polyurethane
Colour
White
Minimum Cover Depth
SUBJECT TO VARIATION BY THE REGULATORY AUTHORITY. No vehicular loading - 300mm. With vehicular loading: Under driveways 450mm; Sealed roadways 600mm; Unsealed roadways 750mm; Embankment conditions 750mm; Construction equipment loading 500mm - 750mm
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection
up to 2°
Markings
Manufactures name and/or registered trademark > Nominal Size > PVC > Date of Manufacture > Place of Manufacture
Secondary Unit Measure
EA
Product Dimensions
Size/Diameter
525MM
Weight
5.5 kg
Standards & Accreditations
Product Standard
View
