Bend/Elbow

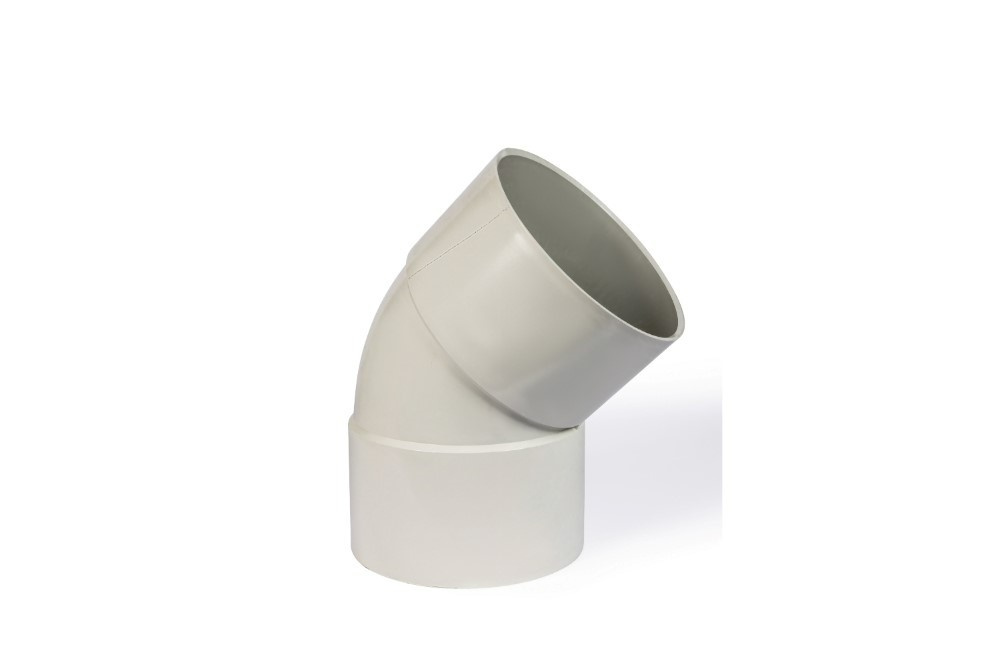

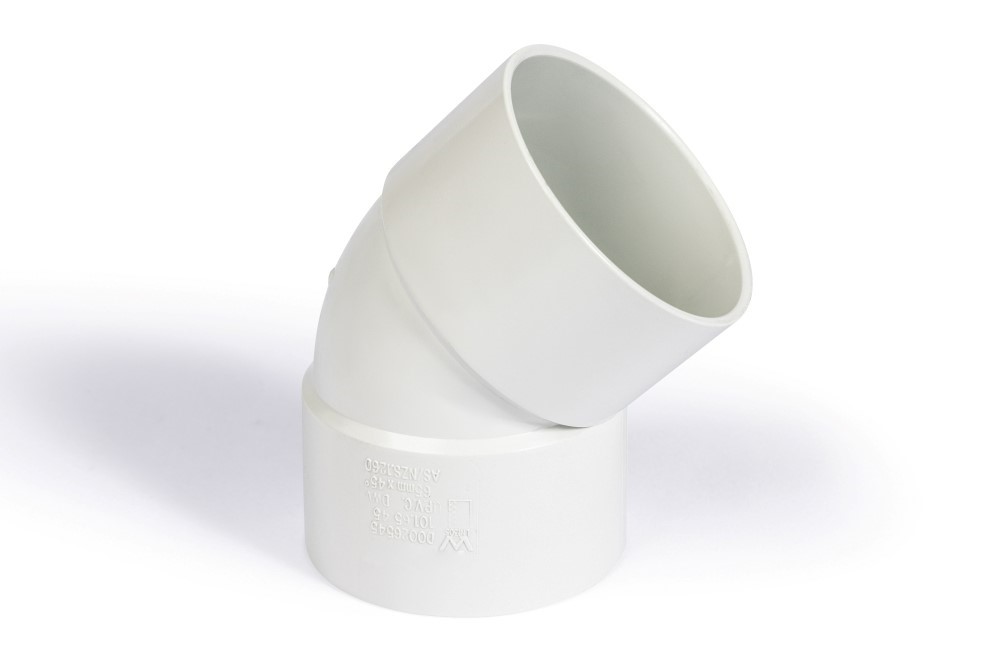

DN50 X 45D DWV PVC-U Bend FF SWJ
System PVC Non Pressure
Product Code D0025045
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size/Diameter
50MM
Degree
45
Primary Material
PVC
Primary Unit of Measure
EA
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
76
Average Number of Joints per Litre - Iplex Primer
228
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Unprotected UV Exposed
2 Years
Secondary Unit Measure
EA
B2B Pack UOM
Bag
B2B Pack Quantity
5
Product Dimensions
Size/Diameter
50MM
Weight
0.06 kg
Carton Weight
3.13kg
