Junction

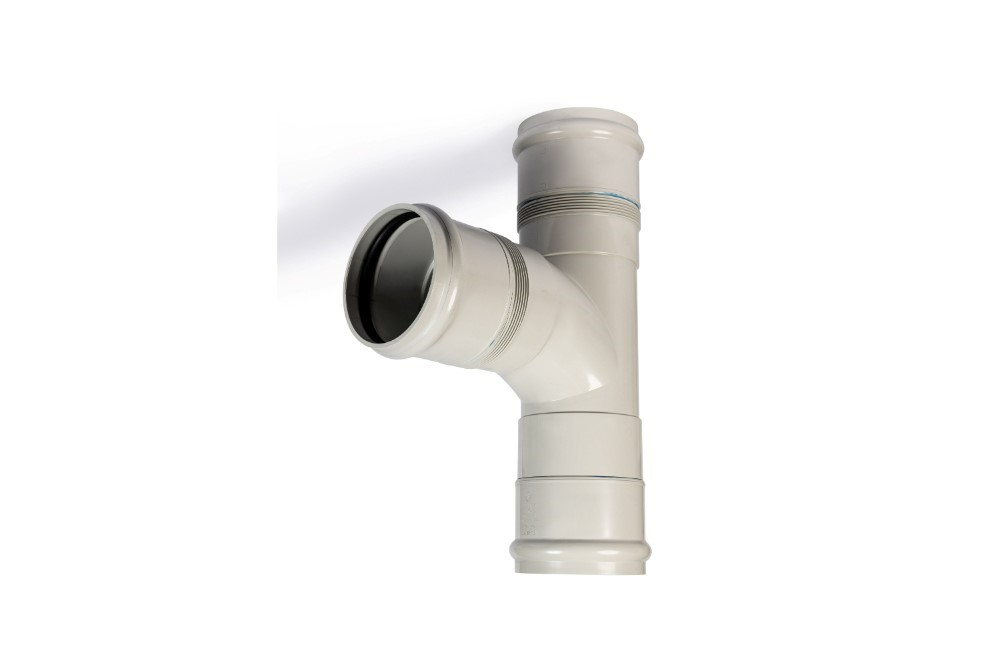

DN375 x 45D DWV PVC-U Junction FF RRJ
System PVC Non Pressure
Product Code DR2437545
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size/Diameter
375 mm
Degree
45
Primary Material
PVC
Primary Unit of Measure
EA
Joint Type
RRJ
Rubber Ring Material
EPDM
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
7
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Socket Deflection
1°
Unprotected UV Exposed
2 Years
Product Dimensions
Size/Diameter
375 mm
Weight
36.5
