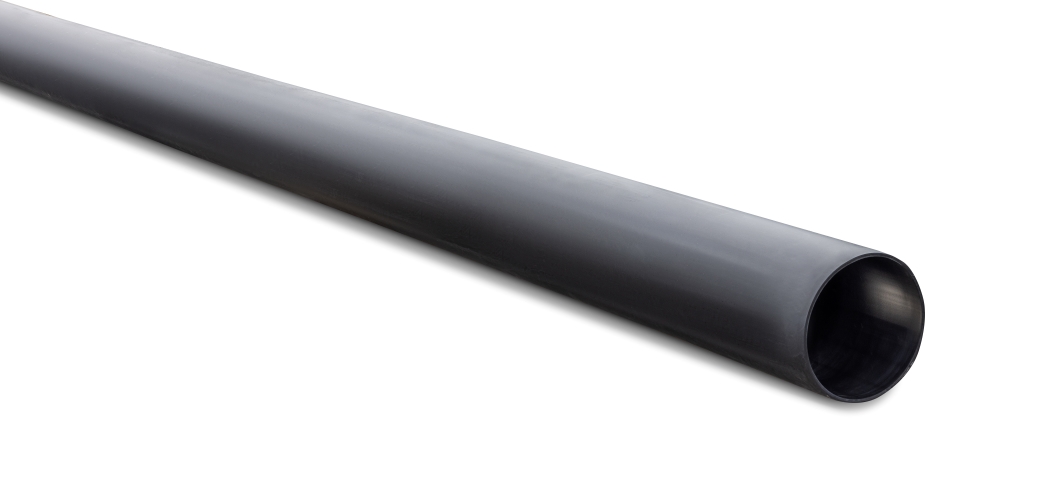

PE100 Polyethylene Pipe Metric DN355 SDR11 x 12 m Black With Lilac Stripes

Back to all products

Length

PE100 Polyethylene Pipe Metric DN355 SDR11 x 12 m Black With Lilac Stripes

System PE Systems

Product Code PLH16355M

Overview

Technical Guide View

Product Properties

Size/Diameter 355MM

Length 12M

Primary Material POLYETHYLENE

Primary Unit of Measure LE

Joint Type Electrofusion, compression, butt-weld, mechanical

Colour Black with purple stripe

Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf

Allowable Operating Pressure - 20 Degrees Celsius 1600 kPa @ 20°C

Minimum Radius of Curvature 15 (x DN) Ref: POP202 Nov2016

Unprotected UV Exposed 2 years in accordance with AS/NZS 2033:2008

Maximum Support Spacing of Pipe Graded 3.00 m

Maximum Support Spacing of Pipe Vertical 6.00 m

Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE

Secondary Unit Measure LE

B2B Pack UOM Crate

B2B Pack Quantity 3

Product Dimensions

Size/Diameter 355MM

Weight 397.0 kg

Crate Quantity 3

Wall Thickness 32.2mm

Maximum Wall Thickness 35.6

Minimum Wall Thickness 32.2

Standards & Accreditations

Product Standard View
