Bend/Elbow

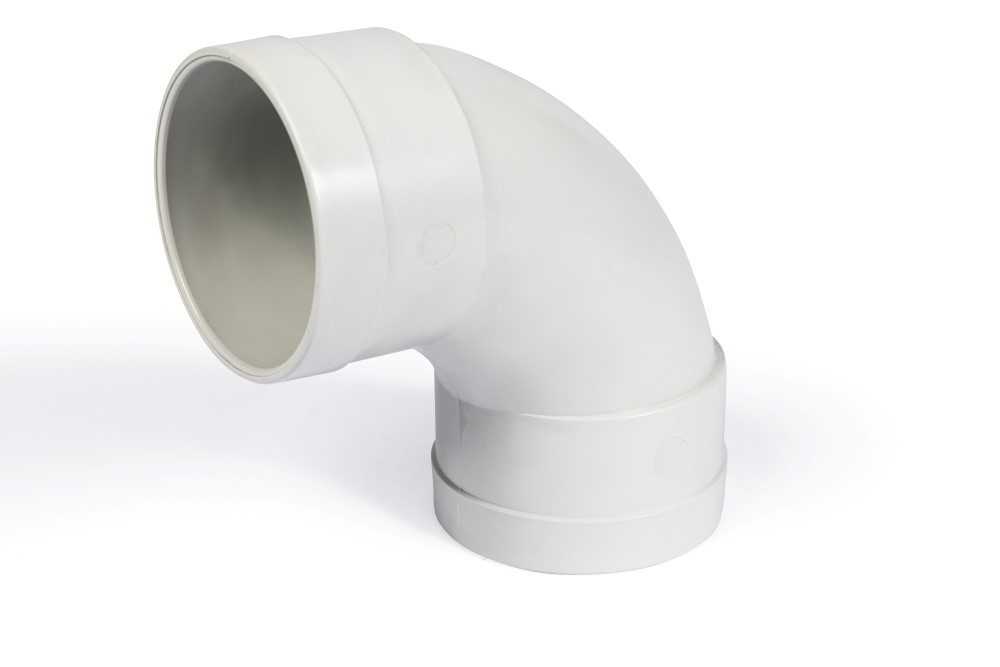

DN300 x 90D DWV PVC-U Bend FF RRJ x RRJ (Fab)
System PVC Non Pressure
Product Code DR0230088
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size/Diameter
300MM
Degree
88
Primary Material
PVC
Primary Unit of Measure
EA
Joint Type
RRJ
Rubber Ring Material
EPDM
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
10
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Socket Deflection
1°
Unprotected UV Exposed
2 Years
Secondary Unit Measure
EA
Product Dimensions
Size/Diameter
300MM
Weight
10.0 kg
