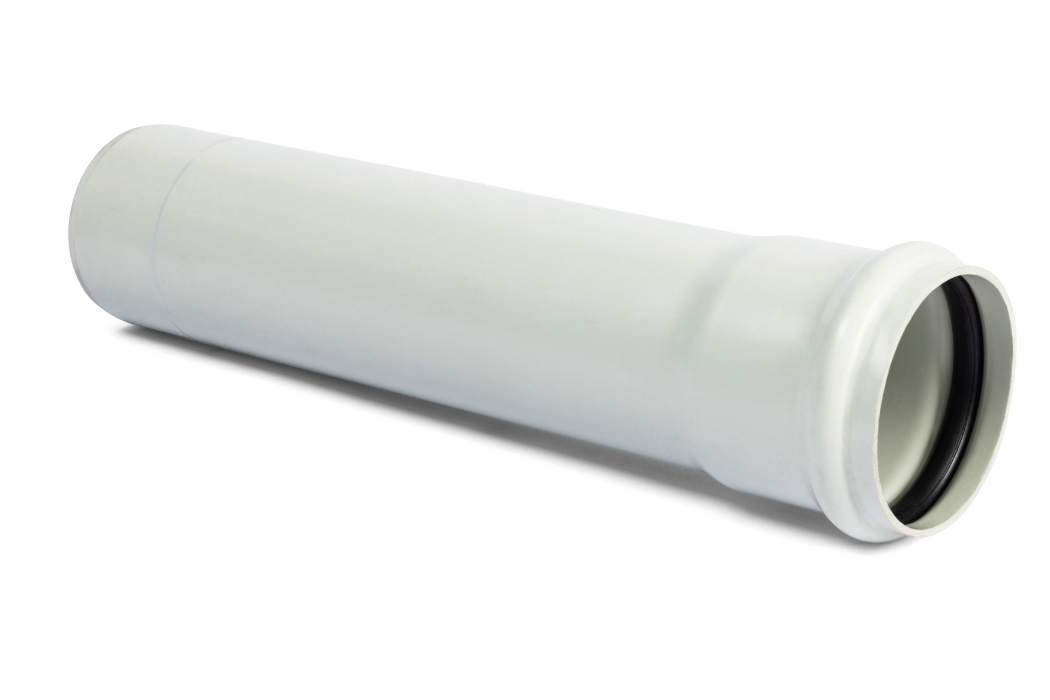

DN300 x 6m SN4 DWV PVC-U Pipe SWJ
System PVC Non Pressure
Product Code DSMH300
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Tree root intrusion resistant
- Leakage elimination
Product Properties
Size/Diameter
300MM
Rating
SN4
Length
6.0M
Primary Material
PVC
Primary Unit of Measure
LE
Joint Type
Solvent Weld Joint
Colour
Light Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
4
Average Number of Joints per Litre - Iplex Primer
12
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
90m
Socket Deflection
0
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
Drain Waste & Vent (DWV)
Secondary Unit Measure
CT
B2B Pack UOM
Crate
B2B Pack Quantity
6
Product Dimensions
Size/Diameter
300MM
Weight
65.5 kg
Crate Quantity
6
Crate Weight
393kg
Wall Thickness
8.4mm
Maximum Wall Thickness
9
Minimum Wall Thickness
8
Socket Length
175
Socket Mouth Diameter
316.1
Socket Root Diameter
314.3
Wall Skin Thickness
0.5
