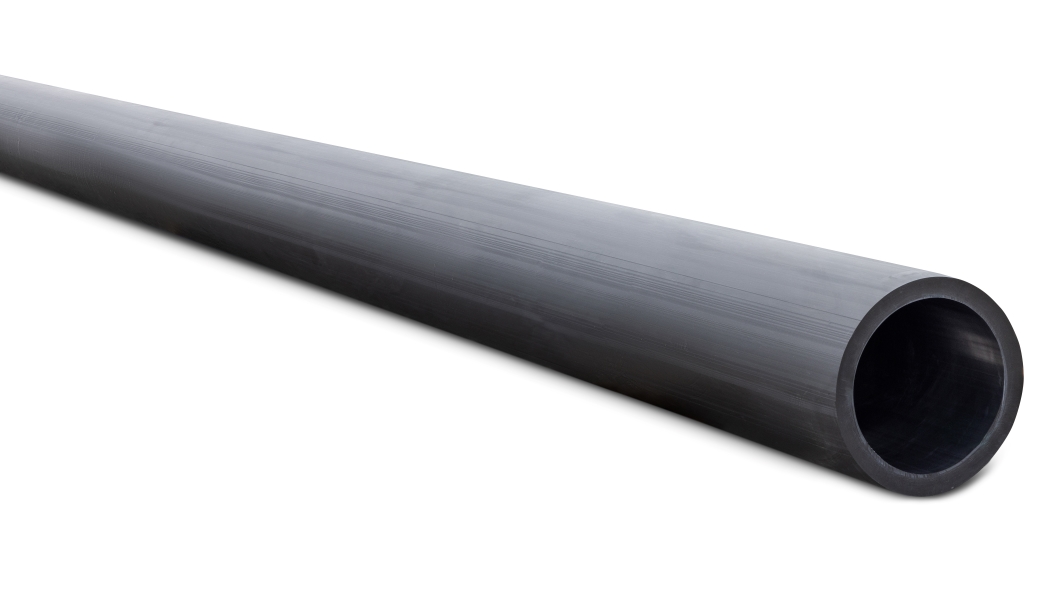

PE100 Polyethylene Pipe Metric DN250 SDR41 x 12 m Black

System   PE Systems

Product Code   POH04250M

Overview
Technical Guide Artboard View
Product Properties
Size/Diameter 250MM
Length 12M
Primary Material POLYETHYLENE
Primary Unit of Measure LE
Joint Type Electrofusion, compression, butt-weld, mechanical
Colour Black
Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf
Allowable Operating Pressure - 20 Degrees Celsius 400 kPa @ 20°C
Minimum Radius of Curvature Refer Iplex Sales Engineer
Unprotected UV Exposed 99.9% UV stable (black only)
Maximum Support Spacing of Pipe Graded 2.60m
Maximum Support Spacing of Pipe Vertical 2.50m
Industry Specific Names poly pipe, PE, polythene, polyethylene pipe, HDPE
Secondary Unit Measure LE
B2B Pack UOM Crate
B2B Pack Quantity 11
Product Dimensions
Size/Diameter 250MM
Weight 58.59 kg
Crate Quantity 11
Wall Thickness 6.2mm
Maximum Wall Thickness 7
Minimum Wall Thickness 6.2
Standards & Accreditations
Product Standard Artboard View
