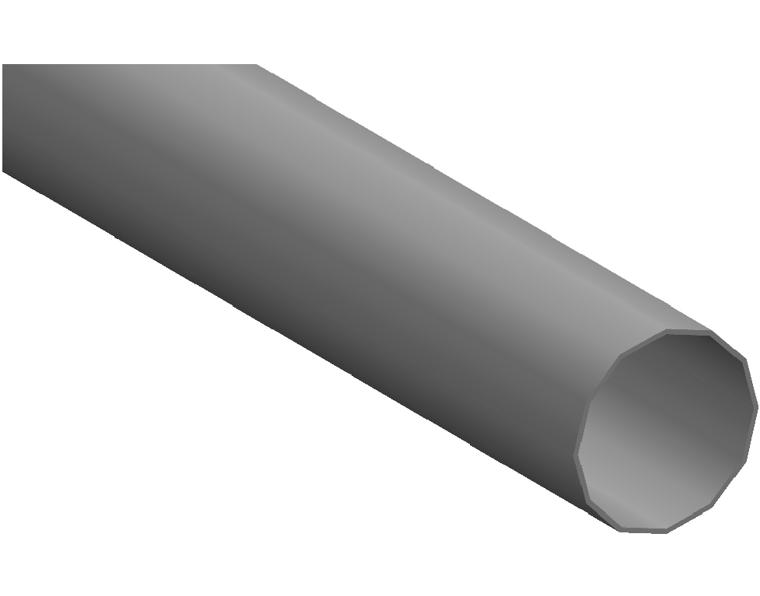

DN225 x 6m SN8 DWV PVC-U Pipe SWJ
System PVC Non Pressure
Product Code DSME225
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Tree root intrusion resistant
- Leakage elimination
Product Data Sheet
View
Product Properties
Size/Diameter
225MM
Rating
SN8
Length
6.0M
Primary Material
PVC
Primary Unit of Measure
LE
Joint Type
Solvent Weld Joint
Colour
Light Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
6
Average Number of Joints per Litre - Iplex Primer
18
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
67.5m
Socket Deflection
0
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.5m
Maximum Support Spacing of Pipe Vertical
3.0m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
Drain Waste & Vent (DWV)
Secondary Unit Measure
LE
B2B Pack UOM
Crate
B2B Pack Quantity
12
Product Dimensions
Size/Diameter
225MM
Weight
41.8 kg
Crate Quantity
12
Crate Weight
620.4kg
Wall Thickness
8.2mm
Maximum Wall Thickness
8.3
Minimum Wall Thickness
7.1
Socket Length
125
Socket Mouth Diameter
250.9
Socket Root Diameter
249.4
Wall Skin Thickness
0.5
