Level Invert Taper

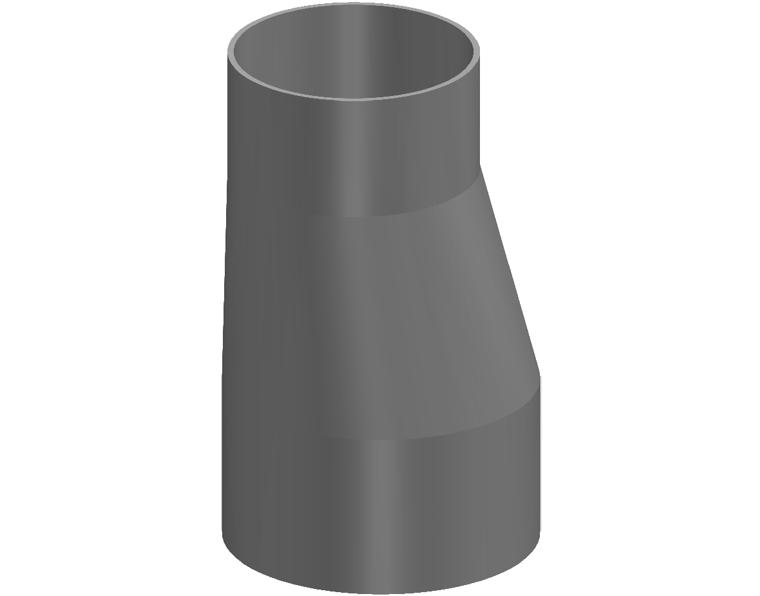

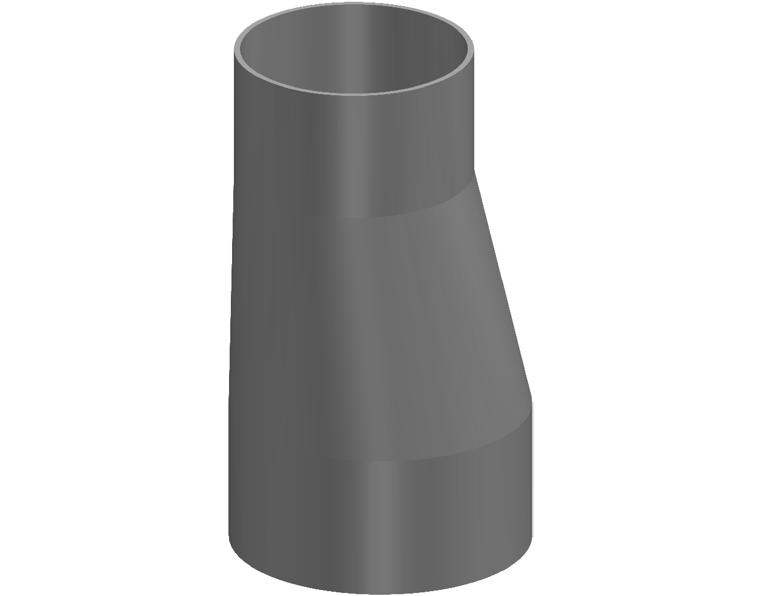

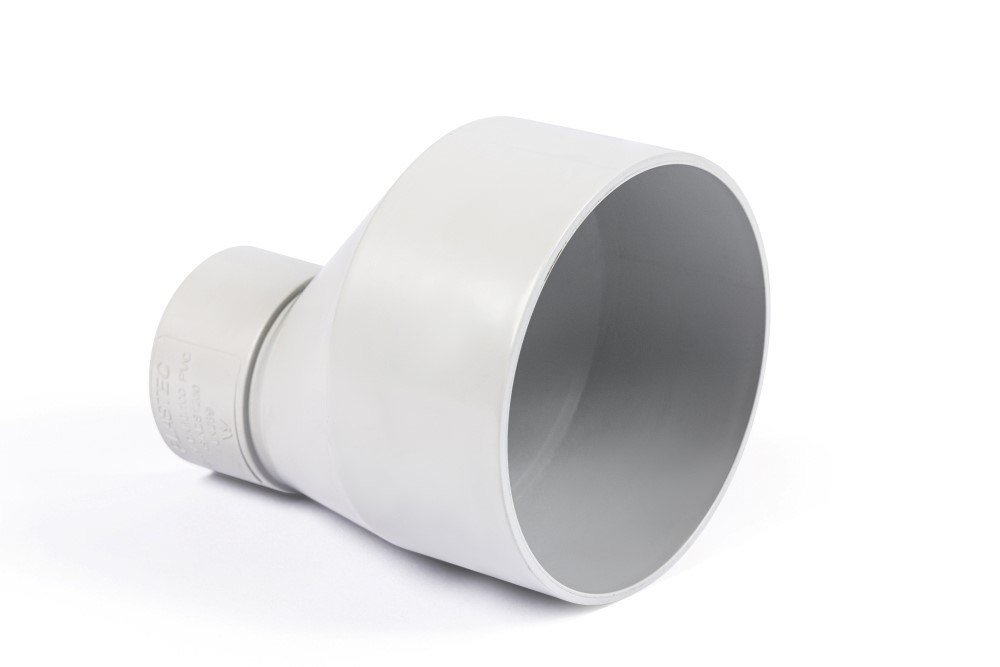

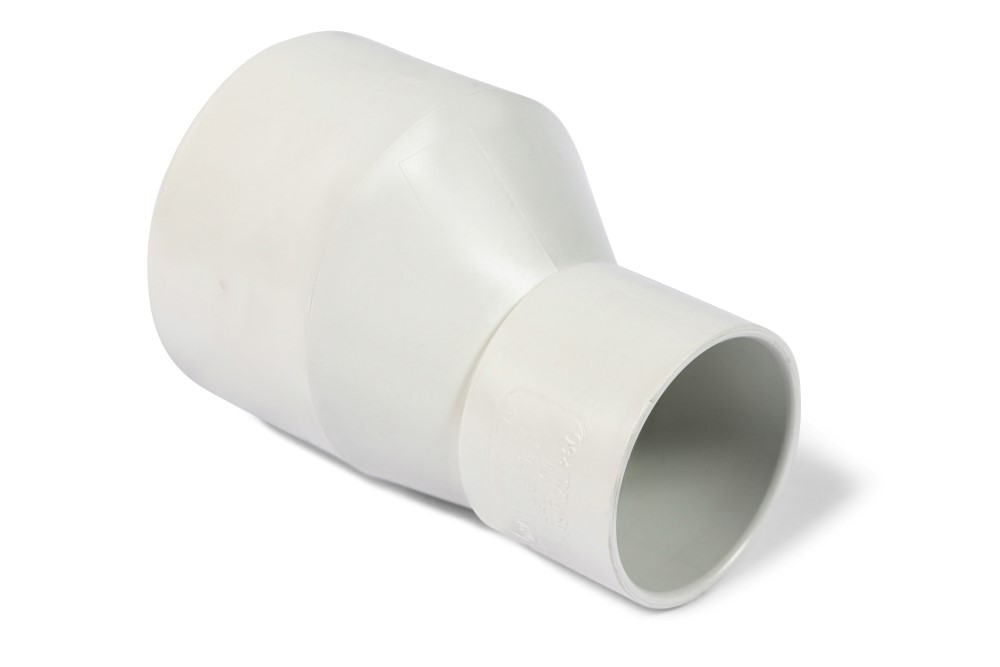

DN150 x DN100 DWV PVC-U Level Invert Taper MF SWJ
System PVC Non Pressure
Product Code D072150100
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size/Diameter
150MM
Primary Material
PVC
Primary Unit of Measure
EA
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
12
Average Number of Joints per Litre - Iplex Primer
36
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Unprotected UV Exposed
2 Years
Secondary Unit Measure
EA
B2B Pack UOM
Carton
B2B Pack Quantity
20
Product Dimensions
Size/Diameter
150MM
Weight
0.29 kg
Carton Quantity
20
Carton Weight
13.05kg
