Bend/Elbow

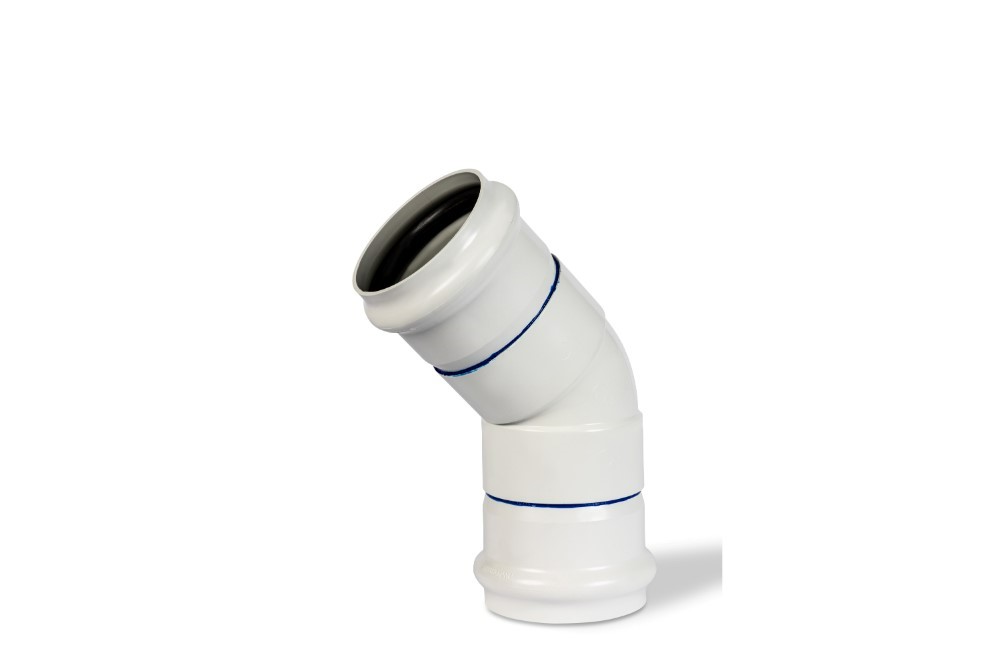

DN100 X 5D DWV PVC-U Bend FF SWJ
System PVC Non Pressure
Product Code D0021005
Overview
- Australian Made
- BEP PVC - Manufacutred from Best Environmental Practice PVC
- Installation Economics
- Operation Efficiences
- Corrosion Resistant
- Treet root intrusion resistance
- Leakage Elimination
Product Data Sheet
View
Product Properties
Size
100MM
Length
BLANK
Degree
5
Primary Material
PVC
UOM
EACH
Joint Type
SWJ
Colour
Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth |Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
26
Average Number of Joints per Litre - Iplex Primer
78
Cure Time for Solvent Weld Joints
24hrs
Allowable Operating Temperature - Degrees
60℃
Unprotected UV Exposed
2 Years
Product Certifications
Product Dimensions
Size
100MM
Weight
0.19kg
Carton Qty
42
Carton Weight
8.19kg
