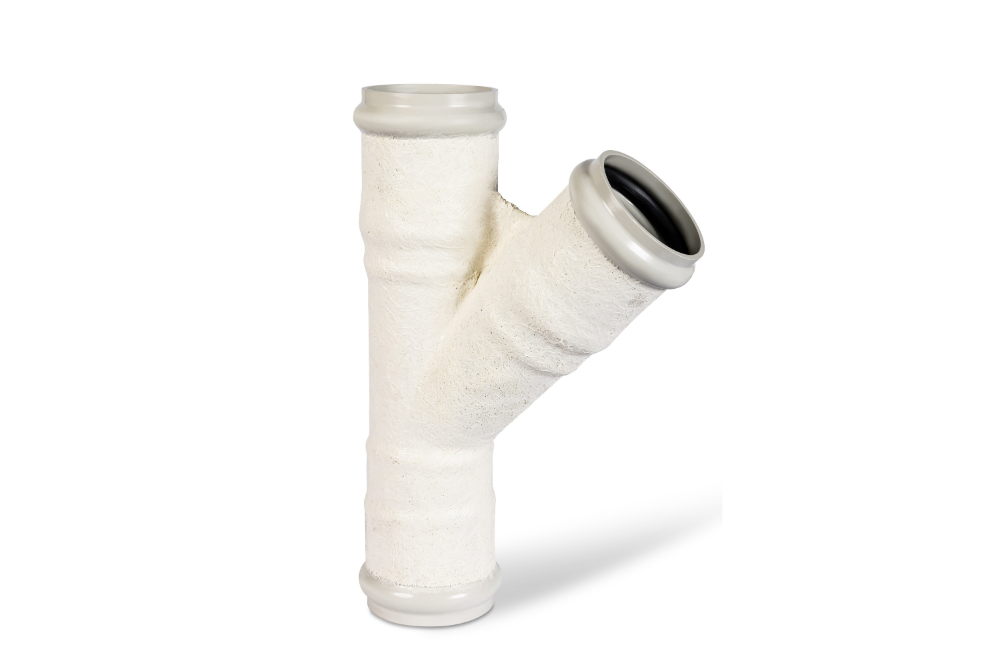

DN100 x 45D DWV PVC-U Side Access RH Junction FF SWJ

Back to all products

Junction

DN100 x 45D DWV PVC-U Side Access RH Junction FF SWJ

System PVC Non Pressure

Product Code D02010045

Overview

Australian Made
BEP PVC - Manufacutred from Best Environmental Practice PVC
Installation Economics
Operation Efficiences
Corrosion Resistant
Treet root intrusion resistance
Leakage Elimination

Product Data Sheet View

Product Properties

Size/Diameter 100 mm

Degree 45

Primary Material PVC

Primary Unit of Measure EA

Joint Type SWJ

Colour Grey

Minimum Cover Depth Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm

Average Number of Joints per Litre - Iplex Solvent 26

Average Number of Joints per Litre - Iplex Primer 78

Cure Time for Solvent Weld Joints 24 hours

Allowable Operating Temperature - Degrees 60°C

Unprotected UV Exposed 2 Years

B2B Pack UOM Carton

B2B Pack Quantity 9

Product Dimensions

Size/Diameter 100 mm

Weight 0.9

Carton Quantity 9

Carton Weight 6.31kg

Standards & Accreditations

Product Standard View

Product Approvals and Appraisals View

Environmental Accreditation View

Warranty View
