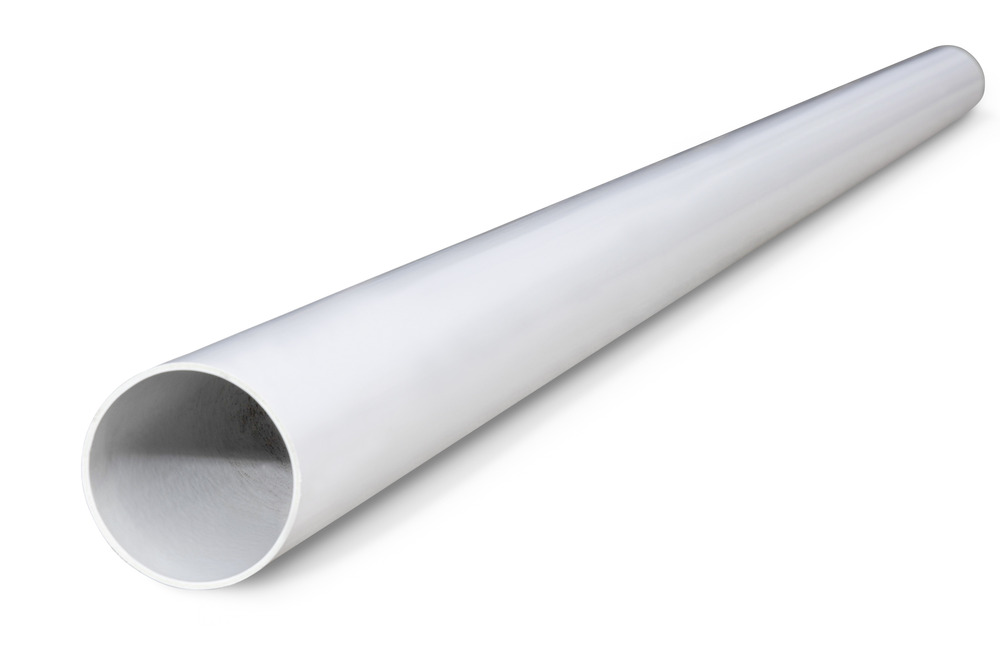

DN100 x 3m SN10 DWV PVC-U Pipe SWJ
System PVC Non Pressure
Product Code DSME100C
Overview
- Australian Made
- BEP PVC - Manufactured from Best Environmental Practice PVC
- Installation economics
- Operation efficiencies
- Corrosion resistant
- Tree root intrusion resistant
- Leakage elimination
Product Properties
Size/Diameter
100MM
Rating
SN10
Length
3.0M
Primary Material
PVC
Primary Unit of Measure
LE
Joint Type
Solvent Weld Joint
Colour
Light Grey
Minimum Cover Depth
Where no subject to vehicular loading - min. cover depth 300mm | Where subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Solvent
26
Average Number of Joints per Litre - Iplex Primer
78
Cure Time for Solvent Weld Joints
24 hours
Allowable Operating Temperature - Degrees
60°C
Minimum Radius of Curvature
30m
Socket Deflection
0
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.2m
Maximum Support Spacing of Pipe Vertical
2.5m
Markings
Material/Size/PN or SN rating/Applicable Australian Standard
Industry Specific Names
Drain Waste & Vent (DWV)
Secondary Unit Measure
LE
B2B Pack UOM
Crate
B2B Pack Quantity
67
Product Dimensions
Size/Diameter
100MM
Weight
4.38 kg
Crate Quantity
67
Crate Weight
262.8kg
Wall Thickness
3.9mm
Maximum Wall Thickness
4.2
Minimum Wall Thickness
3.8
Socket Length
55
Socket Mouth Diameter
110.5
Socket Root Diameter
109.6
Wall Skin Thickness
0.8
