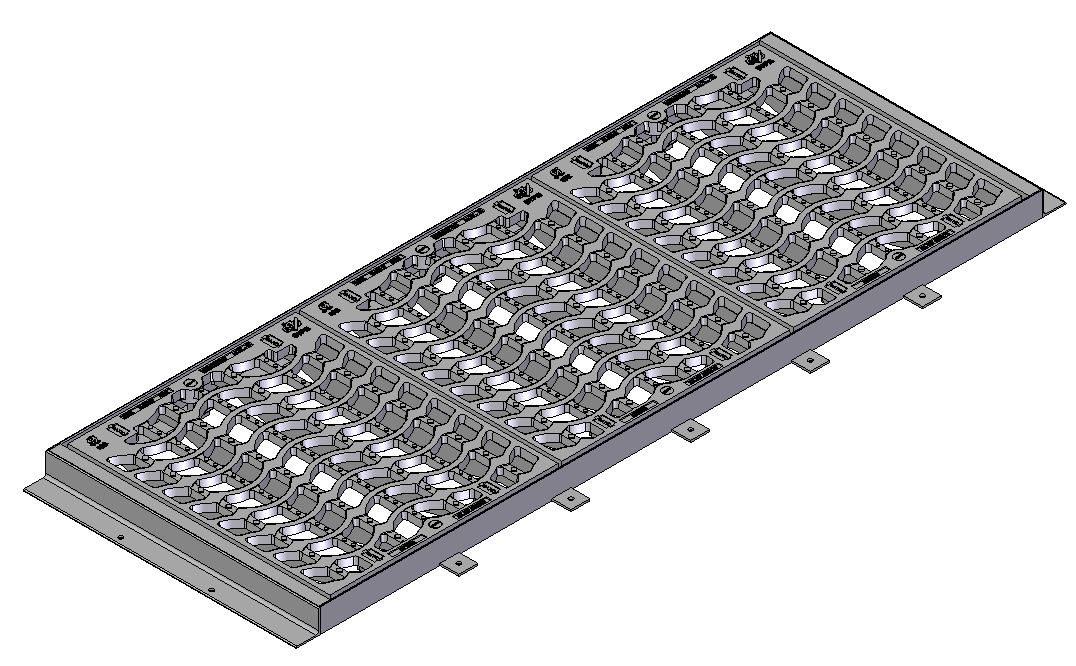

305mm W x 1220mm L Clear Opening, Ductile Iron, Transverse Bar Trench Grate and Frame, Class G

Trench Grate

System Metals

Product Code GM321T3012G

CAD PDF View

Type Variant Ductile Iron

Primary Material DUCTILE IRON

Primary Unit of Measure EA

Number of Parts 2

Load Class G

Markings None

Weight 104.6 kg

Clear Opening - W x L 315 x 1220
