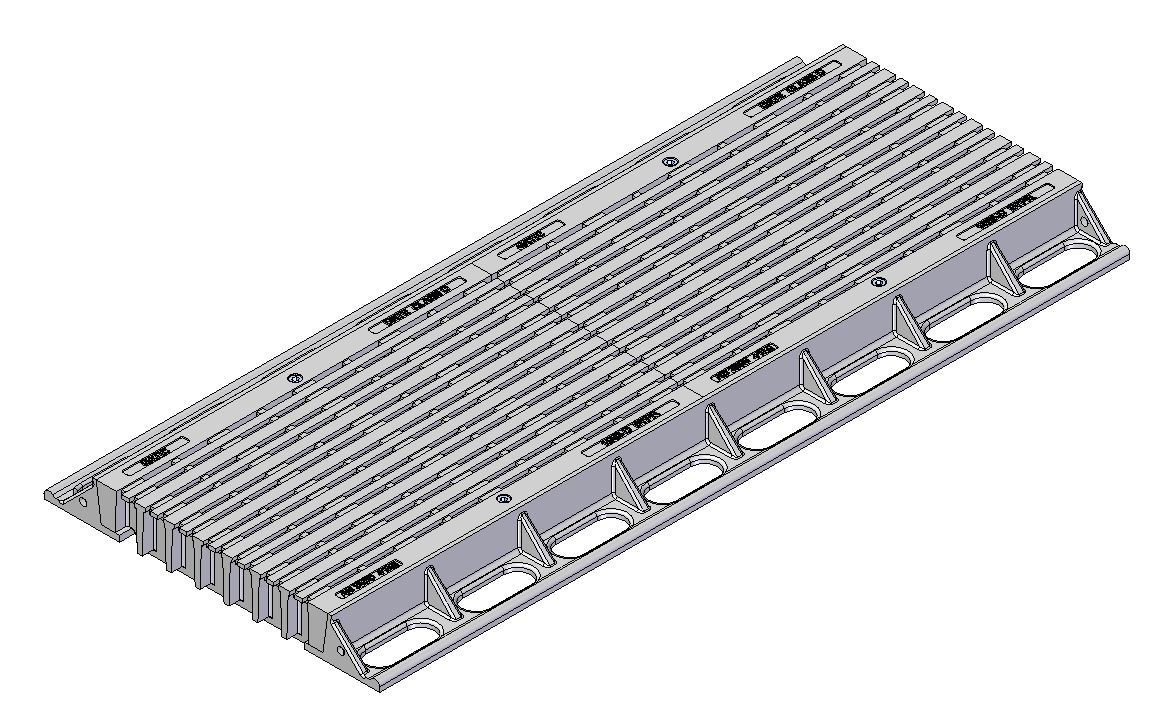

305mm W x 1220mm L Clear Opening, Ductile Iron, Longitudinal Bar Trench Grate and Frame, Class B

Trench Grate

System Metals

Product Code GM321L3012B

CAD PDF View

Size/Diameter 300MM

Primary Material OTHER

Primary Unit of Measure EA

Number of Parts 2

Load Class B

Markings Bike safe

Secondary Unit Measure EA

Size/Diameter 300MM

Weight 76.0 kg

Clear Opening - W x L 305 x 1220
