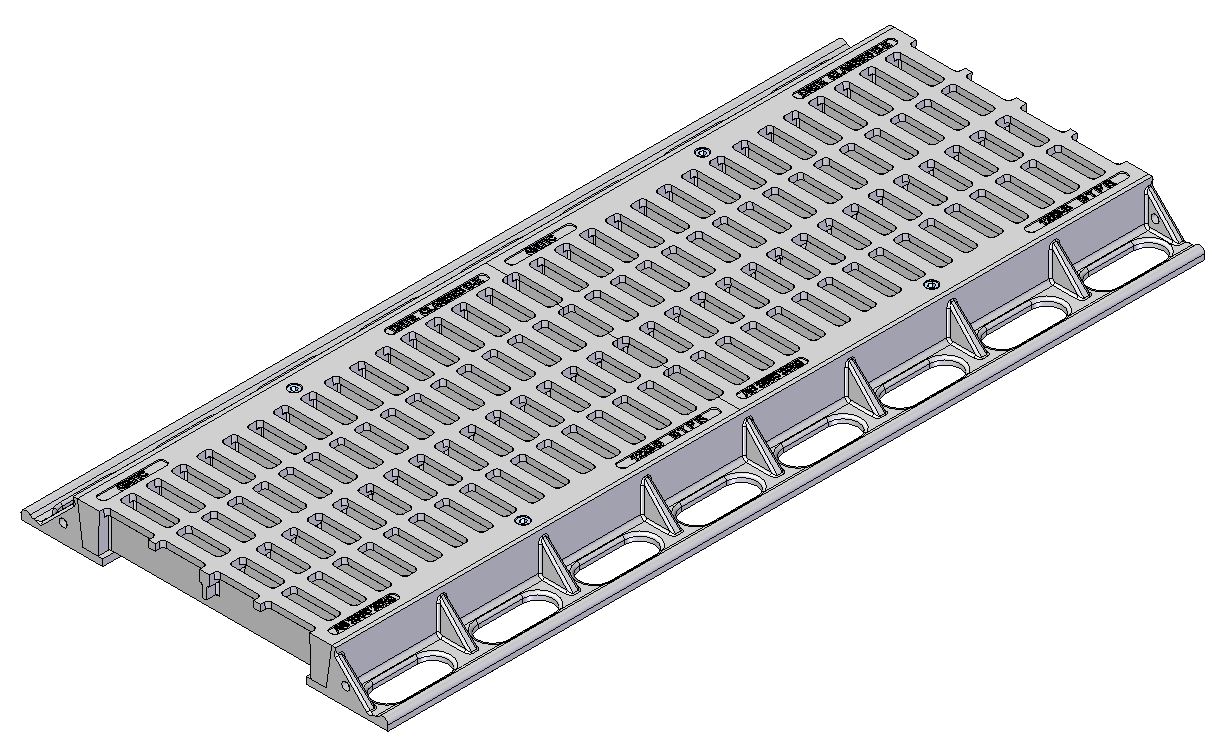

152mm W x 1220mm L Clear Opening, Ductile Iron, Longitudinal Bar Trench Grate and Frame, Class D

Trench Grate

System Metals

Product Code GM321L1512D

CAD PDF View

Size/Diameter 150MM

Primary Material OTHER

Primary Unit of Measure EA

Number of Parts 2

Load Class D

Markings Bike safe

Secondary Unit Measure EA

Size/Diameter 150MM

Weight 71.0 kg

Clear Opening - W x L 152 x 1220

GM325G9919DGAL

900mm W x 1900mm L Clear Opening, Galvanised Ductile Iron, 3 Part Trench Grate and Frame, Class D

GM321T2212D

229mm W x 1220mm L Clear Opening, Ductile Iron, Transverse Bar Trench Grate and Frame, Class D

GM321T4512D

457mm W x 1220mm L Clear Opening, Ductile Iron, Transverse Bar Trench Grate and Frame, Class D

GM321L2212D

229mm W x 1220mm L Clear Opening, Ductile Iron, Longitudinal Bar Trench Grate and Frame, Class D

GM321L3012B

305mm W x 1220mm L Clear Opening, Ductile Iron, Longitudinal Bar Trench Grate and Frame, Class B

GM321T1512B

152mm W x 1220mm L Clear Opening, Ductile Iron, Transverse Bar Trench Grate and Frame, Class B

GM321L3012D

305mm W x 1220mm L Clear Opening, Ductile Iron, Longitudinal Bar Trench Grate and Frame, Class D

GM325G6619DGAL

600mm W x 1900mm L Clear Opening, Galvanised Ductile Iron, 3 Part Trench Grate and Frame, Class D

GM321T1512D

152mm W x 1220mm L Clear Opening, Ductile Iron, Transverse Bar Trench Grate and Frame, Class D

GM321T6112D

610mm W x 1220mm L Clear Opening, Ductile Iron, Transverse Bar Trench Grate and Frame, Class D
