PE100 Polyethylene Pipe Metric DN90 SDR11 x 100 m Black with Cream Stripe

Back to all products

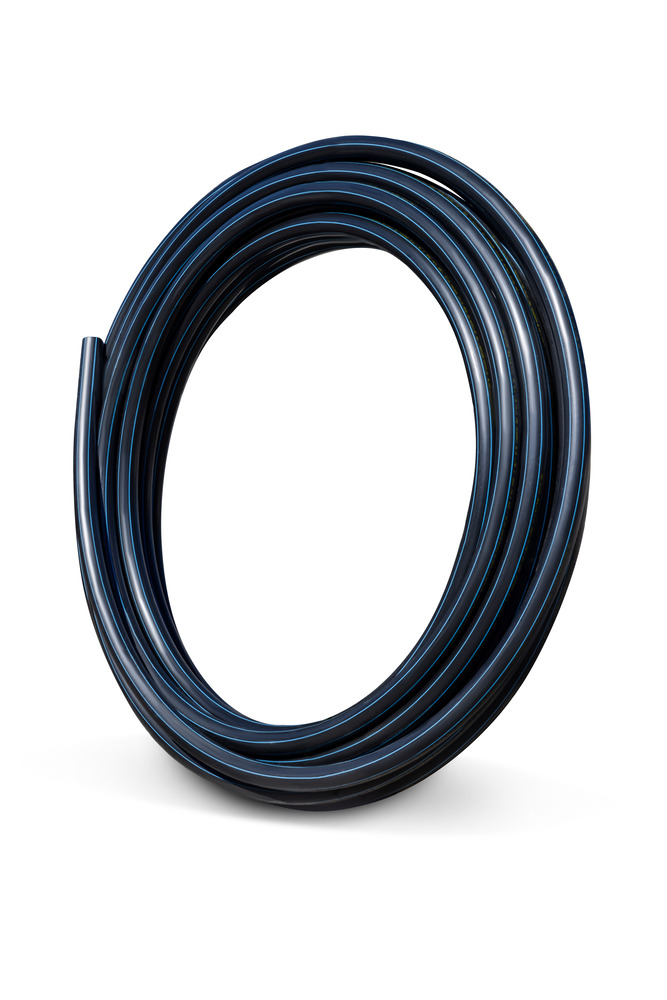

Coil

PE100 Polyethylene Pipe Metric DN90 SDR11 x 100 m Black with Cream Stripe

System PE Systems

Product Code PCH1690100

Overview

Lightweight
Durable
Long Service Life
Environmentally Friendly
Corrosion and Chemical Resistance

Product Properties

Size/Diameter 90 mm

Rating SDR11

Length 100 m

Primary Material Polyethylene

Primary Unit of Measure CO

Joint Type Electrofusion, compression, butt weld, mechanical

Colour Black with cream stripe

Coating Specification Cream Stripe

Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf Link

Allowable Operating Pressure - 20 Degrees Celsius 800 kPa

Minimum Radius of Curvature 15 (x DN) Ref: PIPA POP202

Maximum Diametric Deflection - 50yrs 7.5% (AS/NZS 2566)

Unprotected UV Exposed 2 years in accordance with AS/NZS 2033 yr

Maximum Support Spacing of Pipe Graded 1.35m

Maximum Support Spacing of Pipe Vertical 2.70 m (Reference AS/NZS 2033, applicable to above ground installations)

Industry Specific Names Poly pipe, PE, polythene, polyethylene pipe, HDPE, cream stripe

Product Dimensions

Size/Diameter 90 mm

Weight 215.09 kg

Wall Thickness 8.2mm

Maximum Wall Thickness 9.2 mm

Minimum Wall Thickness 8.2 mm

Standards & Accreditations

Product Standard View

Environmental Accreditation View
