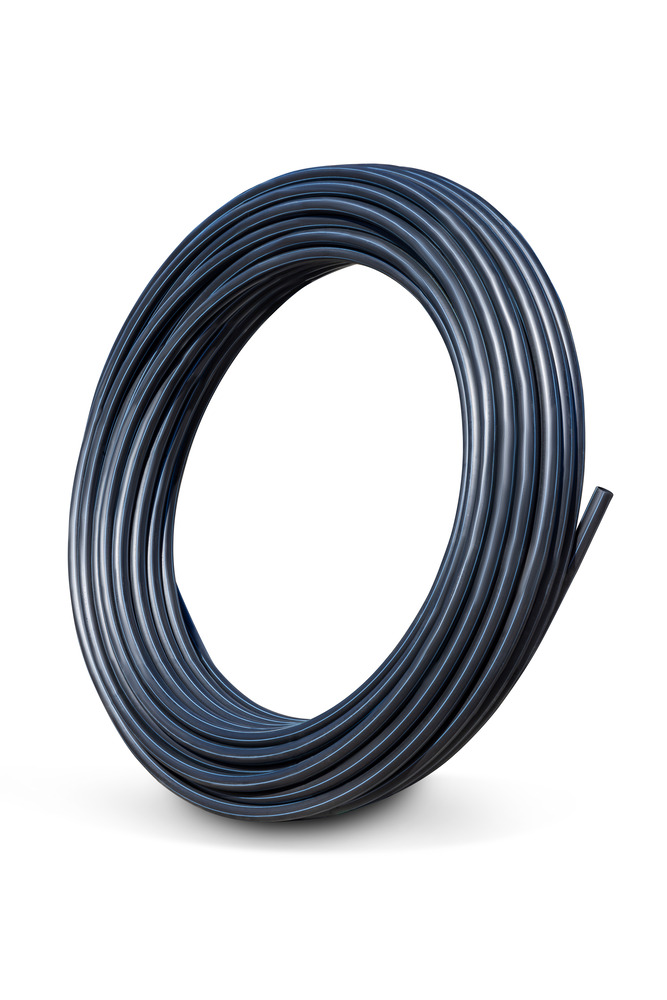

Coil
PE100 Polyethylene Pipe Metric DN75 SDR13.6 x 100 m Co-Ex Lilac
System PE Systems
Product Code PHXL1275100
Overview
- Lightweight
- Durable
- Long Service Life
- Environmentally Friendly
- Corrosion and Chemical Resistance
Product Properties
Size/Diameter
75 mm
Rating
SDR13.6
Length
100 m
Primary Material
Polyethylene
Primary Unit of Measure
CO
Joint Type
Electrofusion, compression, butt weld, mechanical
Colour
Purple coating
Coating Specification
Lilac
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf Link
Allowable Operating Pressure - 20 Degrees Celsius
1000 kPa
Minimum Radius of Curvature
21 (x DN) Ref: PIPA POP202
Maximum Diametric Deflection - 50yrs
7.5% (AS/NZS 2566)
Unprotected UV Exposed
2 years in accordance with AS/NZS 2033 yr
Maximum Support Spacing of Pipe Graded
1.20m
Maximum Support Spacing of Pipe Vertical
2.40 m (Reference AS/NZS 2033, applicable to above ground installations)
Industry Specific Names
Poly pipe, PE, polythene, polyethylene pipe, HDPE, lilac
Product Dimensions
Size/Diameter
75 mm
Weight
123.02 kg
Wall Thickness
5.5mm
Maximum Wall Thickness
6.2 mm
Minimum Wall Thickness
5.5 mm
Wall Skin Thickness
0.8 mm
