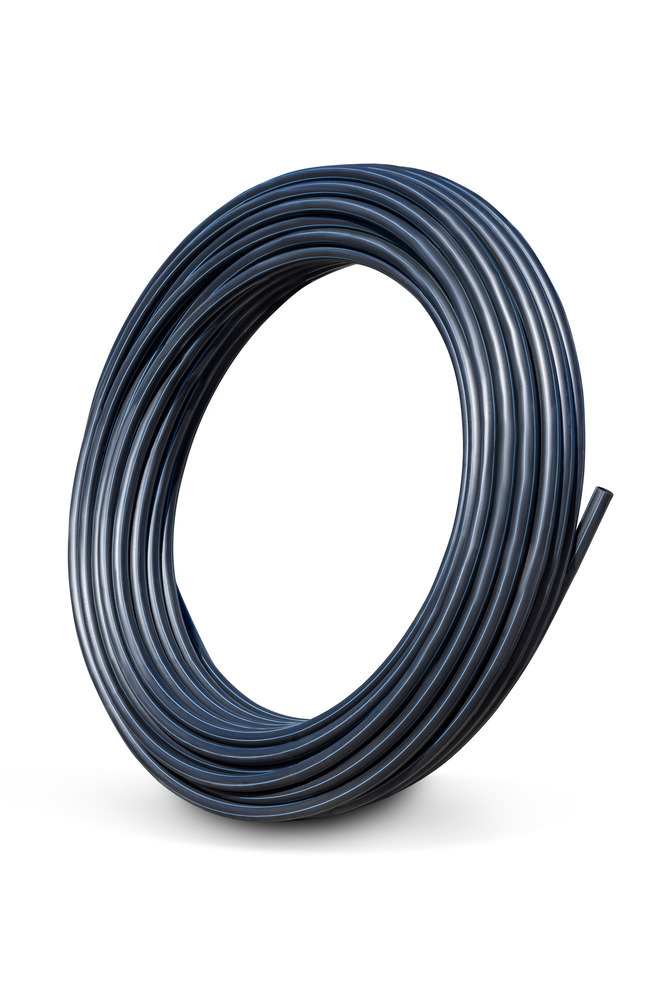

Coil
PE100 Polyethylene Pipe Metric DN63 SDR11 x 50 m Co-Ex Lilac
System PE Systems
Product Code PHXL166350
Overview
- Lightweight
- Durable
- Long Service Life
- Environmentally Friendly
- Corrosion and Chemical Resistance
Product Properties
Size/Diameter
63 mm
Rating
SDR11
Length
50 m
Primary Material
Polyethylene
Primary Unit of Measure
CO
Joint Type
Electrofusion, compression, butt weld, mechanical
Colour
Purple coating
Coating Specification
Lilac
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf Link
Allowable Operating Pressure - 20 Degrees Celsius
1600 kPa
Minimum Radius of Curvature
15 (x DN) Ref: PIPA POP202
Maximum Diametric Deflection - 50yrs
7.5% (AS/NZS 2566)
Unprotected UV Exposed
2 years in accordance with AS/NZS 2033 yr
Maximum Support Spacing of Pipe Graded
1.05m
Maximum Support Spacing of Pipe Vertical
2.10 m (Reference AS/NZS 2033, applicable to above ground installations)
Industry Specific Names
Poly pipe, PE, polythene, polyethylene pipe, HDPE, lilac
Product Dimensions
Size/Diameter
63 mm
Weight
53.28 kg
Wall Thickness
5.8mm
Maximum Wall Thickness
6.5 mm
Minimum Wall Thickness
5.8 mm
Wall Skin Thickness
0.8 mm
