Coil

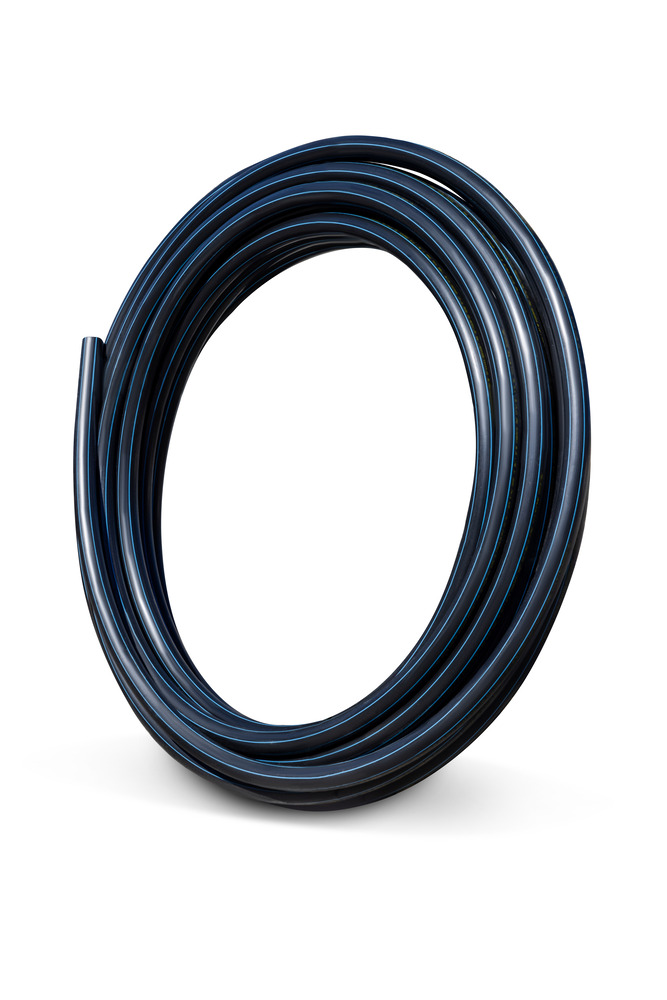

PE100 Polyethylene Pipe Metric DN32 SDR17 x 150 m Black With Blue-Stripe
System PE Systems
Product Code PBH1040150
Overview
- Lightweight
- Durable
- Long Service Life
- Environmentally Friendly
- Corrosion and Chemical Resistance
Product Properties
Size/Diameter
40 mm
Rating
SDR17
Length
150 m
Primary Material
Polyethylene
Primary Unit of Measure
CO
Joint Type
Electrofusion, compression, mechanical
Colour
Black with blue stripe
Coating Specification
Blue Stripe
Allowable Operating Temperature - Degrees
Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf Link
Allowable Operating Pressure - 20 Degrees Celsius
1000 kPa @ 20°C
Minimum Radius of Curvature
25 (x DN) Ref: PIPA POP202
Maximum Diametric Deflection - 50yrs
7.5% (AS/NZS 2566)
Unprotected UV Exposed
2 years in accordance with AS/NZS 2033 yr
Maximum Support Spacing of Pipe Graded
0.85
Maximum Support Spacing of Pipe Vertical
1.70 m (Reference AS/NZS 2033, applicable to above ground installations)
Industry Specific Names
Poly pipe, PE, polythene, polyethylene pipe, HDPE, Blue stripe
Product Dimensions
Size/Diameter
40 mm
Weight
44.34 kg
Wall Thickness
2.4mm
Maximum Wall Thickness
2.8 mm
Minimum Wall Thickness
2.4 mm
