Length

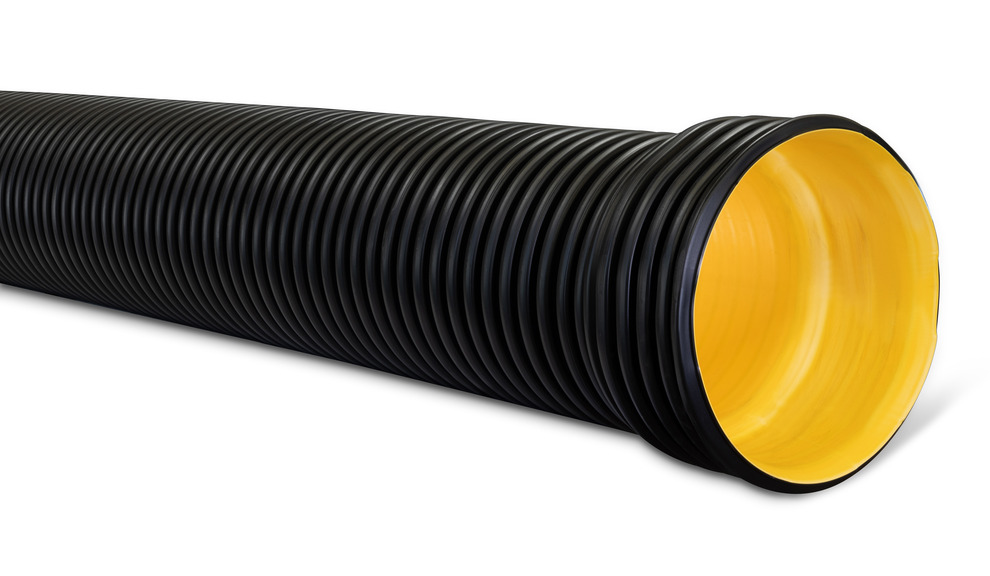

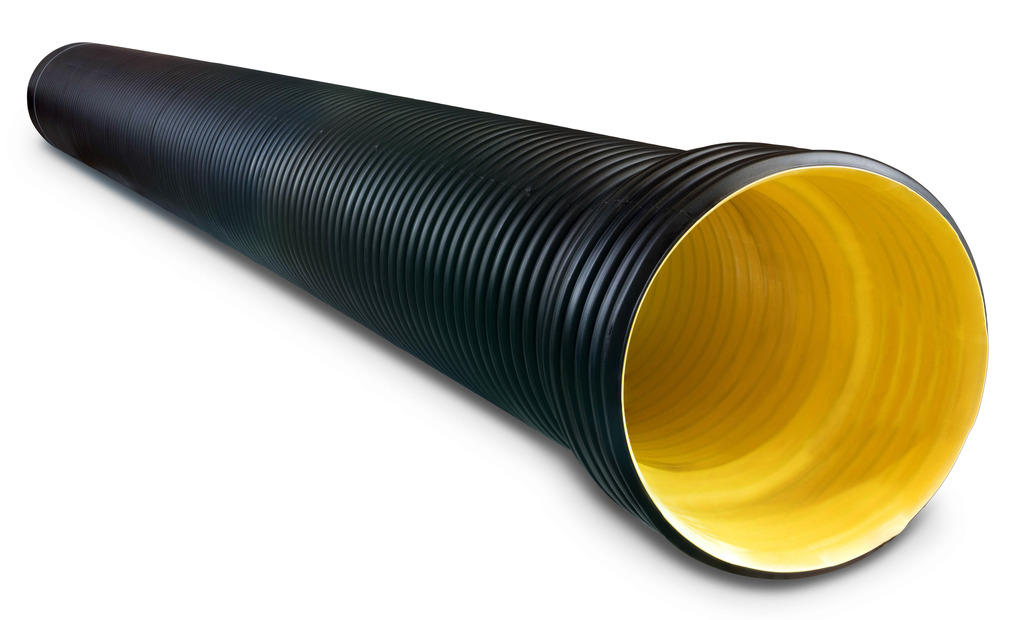

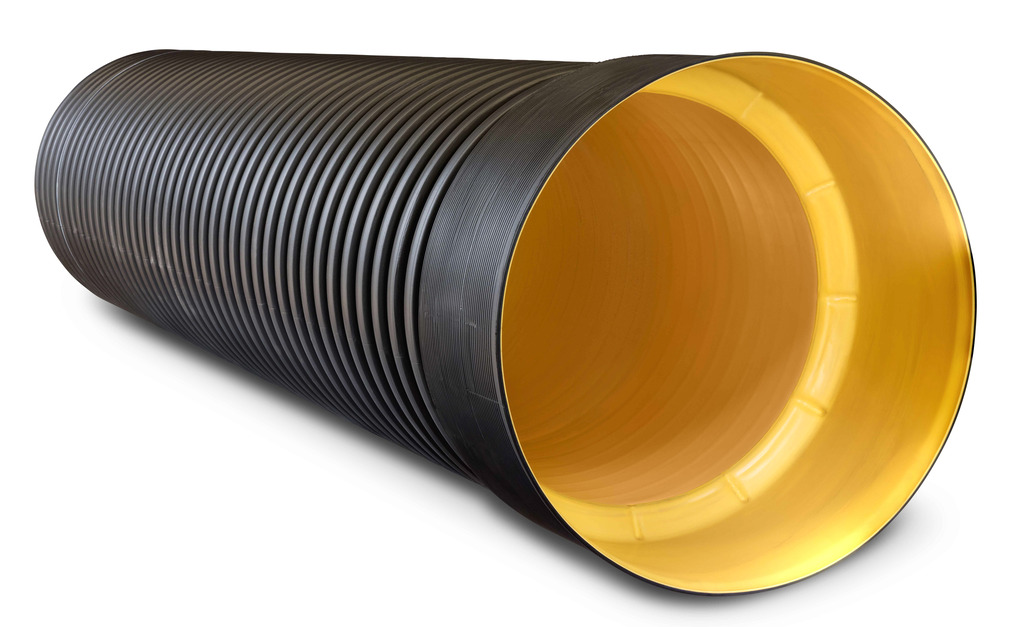

DN300 x 3m SN8 BlackMax® Drainage Pipe RRJ
System PP Drainage & Sewer Systems
Product Code GR8300C
Overview
- Australian Made
- Installation Economics
- Operation Efficiences
- Abrasion and Corrosion Resistant
- Treet root intrusion resistance
- Smooth bore for hydraulic performance
- Low embodied energy for environmental benefits
Additional Information
Requires DN300 Rubber Ring Iplex Code: GERSEW300
CAD 2D
View
CAD 3D
View
Product Data Sheet
View
CAD PDF
View
Product Properties
Size/Diameter
300 mm
Rating
SN8
Length
3.0 m
Primary Material
POLYPROPYLENE
Primary Unit of Measure
LE
Joint Type
RRJ
Rubber Ring Material
SBR
Colour
Black with yellow internal liner
Minimum Cover Depth
Not subject to vehicular loading - min. cover depth 300mm | Subject to vehicular loading min. cover depth | Under Driveways 450mm | In sealed roadways 600mm | In unsealed roadways 750mm
Average Number of Joints per Litre - Iplex Lubricant
28
Allowable Operating Temperature - Degrees
Allowing Operating Temperature. Up to 50 °C Re rating is applied for Temperatures >30℃
Socket Deflection
2°
Maximum Diametric Deflection - 50yrs
0.075
Unprotected UV Exposed
2 Years
Maximum Support Spacing of Pipe Graded
1.9m
Maximum Support Spacing of Pipe Vertical
3.8m
Markings
Iplex Pipelines, DN, SN8, PP, Date of Manufacture, BlackMAX®
Secondary Unit Measure
LE
B2B Pack UOM
Crate
B2B Pack Quantity
6
Product Dimensions
Size/Diameter
300 mm
Weight
20
Crate Quantity
6
Crate Weight
116.4kg
Wall Thickness
2.0 mm
Socket Depth
147 mm
Witness Mark Detail
147
Socket Length
155 mm
