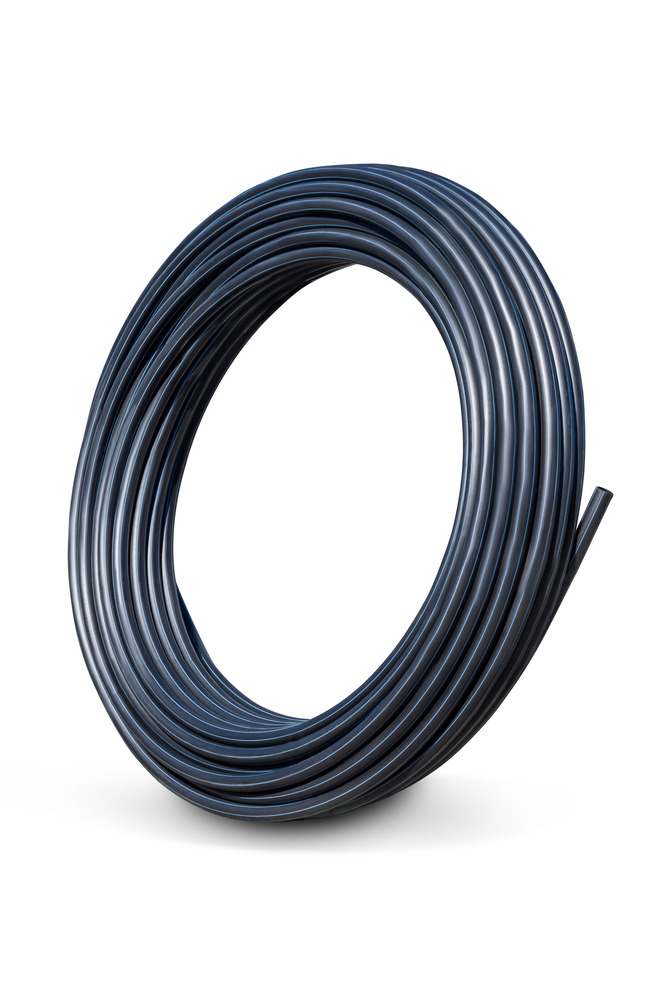

PE100 Polyethylene Pipe Rural Greenline 1.50in x 300 m Black with Green Stripe

Back to all products

Coil

PE100 Polyethylene Pipe Rural Greenline 1.50in x 300 m Black with Green Stripe

System PE Systems

Product Code PICH40300

Overview

Lightweight
Durable
Long Service Life
Environmentally Friendly
Corrosion and Chemical Resistance

Product Properties

Size/Diameter 1-1/2IN

Rating SDR17

Length 300M

Primary Material Polyethylene

Primary Unit of Measure CO

Joint Type Compression

Colour Black with green stripe

Coating Specification Green Stripe

Allowable Operating Temperature - Degrees Refer Page 3_Table 2 | https://www.iplex.com.au/assets/Uploads/dc73cc0a04/POLIplex-PE-Pipes-Fittings-Technical-Guide.pdf Link

Allowable Operating Pressure - 20 Degrees Celsius 2000 kPa

Minimum Radius of Curvature 25 (x DN) Ref: PIPA POP202

Maximum Diametric Deflection - 50yrs 7.5% (AS/NZS 2566)

Unprotected UV Exposed 2 years in accordance with AS/NZS 2033 yr

Maximum Support Spacing of Pipe Graded Refer Iplex Sales Engineer

Maximum Support Spacing of Pipe Vertical Refer Iplex Sales Engineer

Industry Specific Names Poly pipe, PE, polythene, polyethylene pipe, HDPE, 1 1/2 inch, rural

Product Dimensions

Size/Diameter 1-1/2IN

Weight 80.22

Wall Thickness 2.4mm

Maximum Wall Thickness 2.4

Minimum Wall Thickness 2

Standards & Accreditations

Environmental Accreditation View
